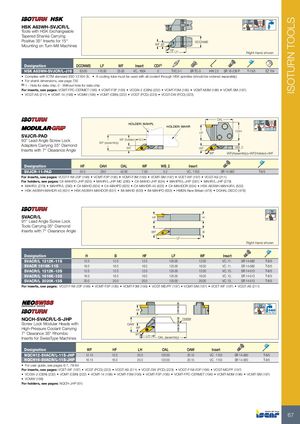

50° 105° HSK A63WH-SVJCR/L MAX Tools with HSK Exchangeable 93°
Tapered Shanks Carrying
Positive 35° Inserts for 15° DCONMS Mounting on Turn-Mill Machines WF 20 78° LF Right-hand shown
| Designation | DCONMS | LF | WF | Insert | CDI(1) | ||||||
| HSK A63WH-SVJCR/L-J16 | 63.00 | 110.00 | 25.00 | VC.. 1604 | 0 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 104 |
- Complies with ICTM standard (ISO 12164-3).
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 735
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197)
- VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
OAL 50° 105° HOLDER: MAHPL MAX HOLDER: MAHR 93° OAH SVJCR-PAD HF
| 93° Lead Angle Screw Lock | WF (holder) | 19.5 | |
| Adapters Carrying 35° Diamond | WF (assembly) |
| WF | WF | WB_2 | |||
| Inserts with 7° Clearance Angle | |||||
| 93º | WF(Assembly)=WF(Holder)+WF |
| Designation | HF | OAH | OAL | WF | WB_2 | Insert | ||
| SVJCR-11-PAD | 24.0 | 28.0 | 42.00 | 7.50 | 5.2 | VC.. 1103 | SR 14-560 | T-8/5 |
For inserts, see pages: VCGT-F1M-20P (196) VCMT-F3P (195) VCMT-F3M (195) VCMT-SM (197) VCET-WF (197) VCGT-AS (211) For holders, see pages: C#-MAHPD-JHP (625) MAHR/L-JHP-MC (280) C#-MAHD-JHP (624) MAHPR/L-JHP (281) MAHR/L-JHP (279)
- MAHR/L (279)
- MAHPR/L (280)
- C#-MAHD (624)
- C#-MAHPD (625)
- C#-MAHDR-45 (623)
- C#-MAHDOR (624)
- HSK A63WH-MAHUR/L (632)
- HSK A63WH-MAHDR-45 (631)
- HSK A63WH-MAHDOR (631)
- IM-MAHD (633)
- IM-MAHPD (633)
- HMSN-New Britain (478)
- DGHAL-DECO (478)
52° SVACR/L MAX HF H 91° Lead Angle Screw Lock 91°
Tools Carrying 35° Diamond
Inserts with 7° Clearance Angle WF B
LF Right-hand shown
| Designation | H | B | HF | LF | WF | Insert | ||
| SVACR/L 1212K-11S | 12.0 | 12.0 | 12.0 | 125.00 | 12.00 | VC..11.. | SR 14-560 | T-8/5 |
| SVACR 1616K-11S | 16.0 | 16.0 | 16.0 | 125.00 | 16.00 | VC..11.. | SR 14-560 | T-8/5 |
| SVACR/L 1212K-13S | 12.0 | 12.0 | 12.0 | 125.00 | 12.00 | VC..13.. | SR 14-513 | T-8/5 |
| SVACR/L 1616K-13S | 16.0 | 16.0 | 16.0 | 125.00 | 16.00 | VC..13.. | SR 14-513 | T-8/5 |
| SVACR/L 2020K-13S | 20.0 | 20.0 | 20.0 | 125.00 | 20.00 | VC..13.. | SR 14-513 | T-8/5 |
For inserts, see pages: VCGT-F1M-20P (196) VCMT-F3P (195) VCMT-F3M (195) VCGT-MD/PF (197) VCMT-SM (197) VCET-WF (197) VCGT-AS (211)
52° MAX
| HF | 91° B | |||||
| NQCH-SVACR/L-S-JHP Screw Lock Modular Heads with High-Pressure Coolant Carrying 7° Clearance 35° Rhombic Inserts for SwissType Machines | WF OAW LH 91˚ | Holder OAL (assembly) | ||||
| Designation | WF | HF LH | OAL OAW | Insert | ||
| NQCH12-SVACR/L-11S-JHP | 12.15 | 12.0 20.0 | 120.00 20.15 | VC.. 1103 | SR 14-560 | T-8/5 |
| NQCH16-SVACR/L-11S-JHP | 16.15 | 16.0 20.0 | 120.00 20.15 | VC.. 1103 | SR 14-560 | T-8/5 |
- For user guide, see pages 6-7, 78-84
For inserts, see pages: VCET-WF (197) VCGT (PCD) (223) VCGT-AS (211) VCGT-DW (PCD) (223) VCGT-F1M-20P (196) VCGT-MD/PF (197)
- VCGW-2 (CBN) (232)
- VCMT (CBN) (222)
- VCMT-14 (198)
- VCMT-F3M (195)
- VCMT-F3P (195)
- VCMT-FPC-CERMET (196)
- VCMT-M3M (196)
- VCMT-SM (197)
- VCMW (198)
For holders, see pages: NQCH-JHP (61)
