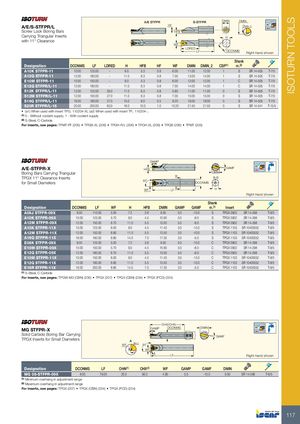

| A/E/S-STFPR/L Screw Lock Boring Bars | A/E | STFPR | HFB HF | S-S | TFPR | DMIN | D DMI | MIN2 N | 91º | ||||
| Carrying Triangular Inserts with 11° Clearance | WF | L LDRED | F | H DCO | NMS | Right-hand | shown | ||||||
| Designation | DCONMS | LF | LDRED | H | HFB | HF | WF | DMIN | DMIN2 | CSP(1) | Shank m.(2) | ||
| A10K STFPR-11 | 10.00 | 125.00 | - | 9.0 | 5.3 | 0.8 | 6.00 | 11.00 | 12.00 | 1 | S | SR 14-505 | T-7/5 |
| A12Q STFPR-11 | 12.00 | 180.00 | - | 11.0 | 6.3 | 0.8 | 7.00 | 13.00 | 14.00 | 1 | S | SR 14-505 | T-7/5 |
| E10M STFPR-11 | 10.00 | 150.00 | - | 9.0 | 5.3 | 0.8 | 6.00 | 12.00 | 12.00 | 1 | C | SR 14-505 | T-7/5 |
| E12Q STFPR/L-11 | 12.00 | 180.00 | - | 11.0 | 6.3 | 0.8 | 7.00 | 14.00 | 14.00 | 1 | C | SR 14-505 | T-7/5 |
| S12K STFPR/L-11 | 12.00 | 125.00 | 35.0 | 11.0 | 6.3 | 0.8 | 5.60 | 11.00 | 11.00 | 0 | S | SR 14-505 | T-7/5 |
| S12M STFPR/L-11 | 12.00 | 150.00 | 27.0 | 11.0 | 6.3 | 0.8 | 7.00 | 15.00 | 15.00 | 0 | S | SR 14-505 | T-7/5 |
| S16Q STFPR/L-11 | 16.00 | 180.00 | 27.0 | 15.0 | 8.0 | 0.5 | 9.20 | 18.00 | 18.00 | 0 | S | SR 14-505 | T-7/5 |
| S20R STFPR/L-16 | 20.00 | 200.00 | 63.0 | 18.0 | 10.0 | 1.0 | 10.20 | 21.50 | 21.50 | 0 | S | SR 14-541 | T-15/5 |
- (a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-..
(1) 0 - Without coolant supply, 1 - With coolant supply (2) S-Steel, C-Carbide
For inserts, see pages: TPMT-PF (205) TPGB-XL (206) TPGH-R/L (206) TPGH-XL (206) TPGB (206) TPMT (205)
| A/E-STFPR-X | HFB GA | MP | GAMF | 91º | ||||||||
| Boring Bars Carrying Trian | gular | DMIN | ||||||||||
| TPGX 11° Clearance Inser | ts | ˚ | B | B-B | ||||||||
| for Small Diameters | 91 | DCON | MS | |||||||||
| WF | LF B | H | Right-hand | shown | ||||||||
| Shank | ||||||||||||
| Designation | DCONMS | LF | WF | H | HFB | DMIN | GAMP | GAMF | m.(1) | Insert | ||
| A08J STFPR-09X | 8.00 | 110.00 | 5.00 | 7.2 | 3.6 | 9.50 | 5.0 | -15.0 | S | TPGX 0902 | SR 14-298 | T-8/5 |
| A10K STFPR-09X | 10.00 | 125.00 | 5.70 | 9.0 | 4.5 | 10.90 | 5.0 | -8.0 | S | TPGX 0902 | SR 14-298 | T-8/5 |
| A12M STFPR-09X | 12.00 | 150.00 | 6.70 | 11.0 | 5.5 | 13.00 | 5.0 | -8.0 | S | TPGX 0902 | SR 14-298 | T-8/5 |
| A10K STFPR-11X | 10.00 | 125.00 | 6.00 | 9.0 | 4.5 | 11.40 | 3.0 | -15.0 | S | TPGX 1103 | SR 10400052 | T-8/5 |
| A12M STFPR-11X | 12.00 | 150.00 | 6.80 | 11.0 | 5.5 | 13.50 | 3.0 | -10.0 | S | TPGX 1103 | SR 10400052 | T-8/5 |
| A16Q STFPR-11X | 16.00 | 180.00 | 8.80 | 14.0 | 7.0 | 17.30 | 3.0 | -5.0 | S | TPGX 1103 | SR 10400052 | T-8/5 |
| E08K STFPR-09X | 8.00 | 125.00 | 5.00 | 7.2 | 3.6 | 9.50 | 5.0 | -15.0 | C | TPGX 0902 | SR 14-298 | T-8/5 |
| E10M STFPR-09X | 10.00 | 150.00 | 5.70 | 9.0 | 4.5 | 10.90 | 5.0 | -8.0 | C | TPGX 0902 | SR 14-298 | T-8/5 |
| E12Q STFPR-09X | 12.00 | 180.00 | 6.70 | 11.0 | 5.5 | 13.00 | 5.0 | -8.0 | C | TPGX 0902 | SR 14-298 | T-8/5 |
| E10M STFPR-11X | 10.00 | 150.00 | 6.00 | 9.0 | 4.5 | 11.40 | 3.0 | -15.0 | C | TPGX 1103 | SR 10400052 | T-8/5 |
| E12Q STFPR-11X | 12.00 | 180.00 | 6.80 | 11.0 | 5.5 | 13.50 | 3.0 | -10.0 | C | TPGX 1103 | SR 10400052 | T-8/5 |
| E16R STFPR-11X | 16.00 | 200.00 | 8.80 | 14.0 | 7.0 | 17.30 | 3.0 | -5.0 | C | TPGX 1103 | SR 10400052 | T-8/5 |
(1) S-Steel, C-Carbide
For inserts, see pages: TPGW-M3 (CBN) (235) TPGX (207) TPGX (CBN) (234) TPGX (PCD) (224)
OHX/OHN
| MG STFPR-X | GAMP | DCONMS | DMIN | 91º | ||
| Solid Carbide Boring Bar Carrying | ||||||
| GAMF | ||||||
| TPGX Inserts for Small Diameters | ||||||
| A |
| WF | RE0.2 | 91˚ | |||
| WF | |||||
| LF | A | ||||
| LF | Right-hand shown |
| Designation | DCONMS | LF | OHN(1) | OHX(2) | WF | GAMP | GAMF | DMIN | |||
| MG 08-STFPR-09X | 8.00 | 79.00 | 20.0 | 56.0 | 4.90 | 5.0 | -15.0 | 9.50 | SR 14-298 | T-8/5 |
(1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range For inserts, see pages: TPGX (207) TPGX (CBN) (234) TPGX (PCD) (224)
