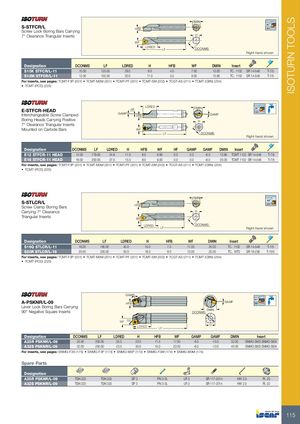

Каталог Iscar токарные державки ISO 2022

S-STFCR/L Screw Lock Boring Bars Ca	rrying		HFB			DMIN				91º
7° Clearance Triangular Inse	rts		WF	LDRED	LF	H DCONM	S		Right-hand	shown
Designation	DCONMS	LF	LDRED	H	HFB	WF	DMIN	Insert
S10K STFCR/L-11	10.00	125.00	29.0	9.0	4.5	7.00	13.00	TC.. 1102	SR 14-548	T-7/5
S12M STFCR/L-11	12.00	150.00	30.0	11.0	5.5	9.00	15.80	TC.. 1102	SR 14-548	T-7/5

For inserts, see pages:TCMT-F3P (201) • T • TCMT (PCD) (223)	CMT-M3M	(201) • TC	MT-PF (201) • TCMT-S	M (202) • TCGT-AS (211) • TCM	T (CBN) (23	4)
E-STFCR-HEAD Interchangeable Screw Clamped Boring Heads Carrying Positive 7° Clearance Triangular Inserts Mounted on Carbide Bars		G	HFB AMP WF LDRED HF	LF H D DMIN	GAMF CONMS		Right-hand sh 91º	own
Designation DCONMS	LF	LDRED	H HFB	WF HF GAMP	GAMF	DMIN	Insert
E12 STFCR-11 HEAD 12.00	179.00	24.8	11.0 6.0	6.80 0.0 0.0	-6.0	13.80	TCMT 1102 SR 14-548	T-7/5
E16 STFCR-11 HEAD 16.00	200.00	37.0	15.0 8.0	9.00 0.0 0.0	-6.0	20.00	TCMT 1102 SR 14-548	T-7/5
For inserts, see pages:TCMT-F3P (201) • T • TCMT (PCD) (223)	CMT-M3M	(201) • TC	MT-PF (201) • TCMT-S	M (202) • TCGT-AS (211) • TCM	T (CBN) (23	4)

S-STLCR/L Screw Clamp Boring Bars			HFB		DMIN			95º
Carrying 7° Clearance Triangular Inserts			WF LDRED	LF	H DCONMS		Right-hand	shown
Designation	DCONMS	LF	LDRED H	HFB	WF DMIN	Insert
S16Q STLCR/L-11	16.00	180.00	45.0 15.0	7.5	11.00 20.00	TC.. 1102	SR 14-548	T-7/5
S20R STLCR/L-16	20.00	200.00	50.0 18.0	9.0	13.00 25.00	TC.. 16T3	SR 16-236	T-15/5

For inserts, see pages: TCMT-F3P (201) TCMT-M3M (201) TCMT-PF (201) TCMT-SM (202) TCGT-AS (211) TCMT (CBN) (234)

GAMP A-PSKNR/L-09 GAMF HFB 75º

90° Negative Square Inserts DMIN DCONMS WF 75° H LDRED LF

For inserts, see pages: SNMG-F3S (175) SNMG-F3P (173) SNMG-M3P (173) SNMG-F3M (174) SNMG-M3M (174) Spare Parts
