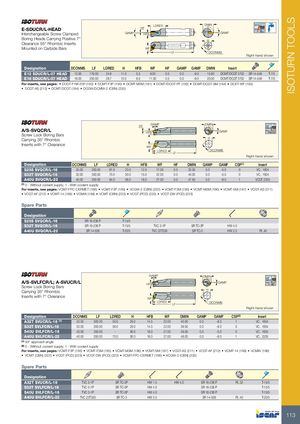

| E-SDUCR/L-HEAD Interchangeable Screw Clam Boring Heads Carrying Posi Clearance 55° Rhombic Ins Mounted on Carbide Bars | ped tive 7° erts | GAM | HFB HF P WF LDRED | L | F | H DCO DMIN | GAMF NMS | Right-hand s 93º-95º 50º MAX | hown | |||
| Designation | DCONMS | LF | LDRED | H | HFB WF | HF | GAMP | GAMF | DMIN | Insert | ||
| E12 SDUCR/L-07 HEAD | 12.00 | 179.00 | 24.8 | 11.0 | 5.5 9.00 | 0.0 | 0.0 | -9.0 | 15.80 | DCMT/DCGT 0702 | SR 14-548 | T-7/5 |
| E16 SDUCR/L-07 HEAD | 16.00 | 200.00 | 29.7 | 15.0 | 8.0 11.00 | 0.5 | 0.0 | -9.0 | 20.00 | DCMT/DCGT 0702 | SR 14-548 | T-7/5 |
For inserts, see pages: DCGT-F1M-20P (192) DCMT-F3P (190) DCMT-M3M (191) DCMT/DCGT-PF (193) DCMT/DCGT-SM (194) DCET-WF (195)
- DCGT-AS (213)
- DCMT/DCGT (194)
- DCGW/DCMW-2 (CBN) (230)
| A/S-SVQCR/L Screw Lock Boring Bars Carrying 35° Rhombic Inserts with 7° Clearance | WF HFB G HF | LDRED AMP | LF | H DC DMIN | ONMS GAMF | Right-hand shown 107.5º 35° MAX | |||||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | HF | DMIN | GAMP | GAMF | CSP(1) Insert |
| S25S SVQCR/L-16 | 25.00 | 250.00 | 61.0 | 23.0 | 12.0 | 17.00 | 0.5 | 32.00 | 0.0 | -5.0 | 0 VC.. 1604 |
| S32T SVQCR/L-16 | 32.00 | 300.00 | 70.0 | 30.0 | 15.0 | 22.00 | 0.0 | 40.00 | 0.0 | -5.0 | 0 VC.. 1604 |
| A40U SVQCR/L-22 | 40.00 | 350.00 | 64.0 | 36.0 | 18.0 | 27.00 | 0.0 | 47.50 | 0.0 | -8.0 | 1 VCGT 2205 |
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211)
- VCGT-AF (212)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
Spare Parts
| Designation | ||||||
| S25S SVQCR/L-16 | SR 16-236 P | T-15/5 | ||||
| S32T SVQCR/L-16 | SR 16-236 P | T-15/5 | TVC 3-1P | SR TC-3P | HW 4.0 | |
| A40U SVQCR/L-22 | SR 14-536 | T-20/5 | TVC 22T330 | SR TC-3 | HW 2.5 | PL 40 |
| A/S-SVLFCR/L; A-SVU Screw Lock Boring Bars Carrying 35° Rhombic Inserts with 7° Clearance | CR/L | WF HFB GAMP | LF LDRED | H DC DMIN | ONMS GAMF | Right-hand shown 95º 48° MAX | ||||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | DMIN | GAMP | GAMF | CSP(2) Insert |
| A32T SVUCR/L-16(1) | 32.00 | 300.00 | 50.0 | 29.0 | 14.5 | 22.00 | 40.00 | 0.0 | -8.0 | 1 VC.. 1604 |
| S32T SVLFCR/L-16 | 32.00 | 300.00 | 56.0 | 29.0 | 14.5 | 22.00 | 39.50 | 0.0 | -8.0 | 0 VC.. 1604 |
| S40U SVLFCR/L-16 | 40.00 | 350.00 | - | 36.0 | 18.0 | 27.00 | 49.00 | 0.0 | -5.0 | 0 VC.. 1604 |
| A40U SVLFCR/L-22 | 40.00 | 350.00 | 70.0 | 36.0 | 18.0 | 27.00 | 48.00 | 0.0 | -8.0 | 1 VC.. 2205 |
(1) 93° approach angle (2) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-F3P (195) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211) VCGT-AF (212) VCMT-14 (198) VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
- VCMT-FPC-CERMET (196)
- VCGW-2 (CBN) (232)
Spare Parts
| Designation | |||||||
| A32T SVUCR/L-16 | TVC 3-1P | SR TC-3P | HW 1.5 | HW 4.0 | SR 16-236 P | PL 32 | T-15/5 |
| S32T SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | ||
| S40U SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | ||
| A40U SVLFCR/L-22 | TVC 22T330 | SR TC-3 | HW 2.5 | SR 14-536 | PL 40 | T-20/5 |
