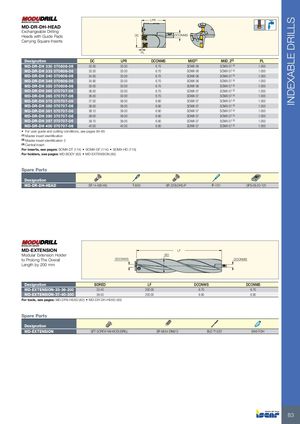

INDEXABLE DRILLS LPR MD-DR-DH-HEAD Exchangeable Drilling Heads with Guide Pads DC DCONMS Carrying Square Inserts PL Designation DC LPR DCONMS MIID(1) MIID_2(2) PL MD-DR-DH 330 070606-06 33.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000 MD-DR-DH 333 070606-06 33.30 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000 MD-DR-DH 340 070606-06 34.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000 MD-DR-DH 349 070606-06 34.90 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000 MD-DR-DH 350 070606-06 35.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000 MD-DR-DH 360 070707-06 36.00 33.00 6.70 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 365 070707-06 36.50 33.00 6.70 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 370 070707-06 37.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 380 070707-06 38.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 381 070707-06 38.10 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 390 070707-06 39.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 397 070707-06 39.70 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000 MD-DR-DH 400 070707-06 40.00 40.00 6.90 SOMX 07 SOMX 07 (3) 1.000 • For user guide and cutting conditions, see pages 84-85 (1) Master insert identification (2) Master insert identification 2 (3) Central insert For inserts, see pages: SOMX-DT (114) • SOMX-GF (114) • SOMX-HD (115) For holders, see pages: MD-BODY (82) • MD-EXTENSION (83) Spare Parts Designation MD-DR-DH-HEAD SR 14-560-HG T-8/53 SR 22052/HG-P IP-7/51 GPS-06-20-120 MD-EXTENSION LF Modular Extension Holder BD to Prolong The Overall DCONWS DCONMS Length by 200 mm Designation BDRED LF DCONWS DCONMS MD-EXTENSION-33-36-200 32.40 200.00 6.70 6.70 MD-EXTENSION-37-40-200 36.40 200.00 6.90 6.90 For tools, see pages: MD-DFN-HEAD (82) • MD-DR-DH-HEAD (83) Spare Parts Designation MD-EXTENSION SET SCREW M6-MODUDRILL SR M5X4 DIN913 BLD T15/S7 SW6-T-SH 83
