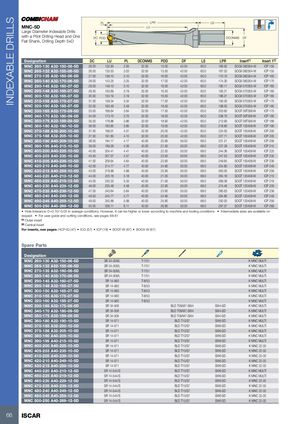

Каталог Iscar сверла со сменной режущей частью 2022 - страница 68
Навигация
Каталог Iscar монолитные фрезы 2022
Каталог Iscar токарный инструмент
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar токарный инструмент для нарезания канавок
Каталог Iscar полирующие фрезы
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
| PL | LPR | L | S | |||||||
| MNC-5D | LU | |||||||||
| Large Diameter Indexable Drills | ||||||||||
| with a Pilot Drilling Head and One | DC | PDD | DC | DF ONMS | ||||||
| Flat Shank, Drilling Depth 5xD | ||||||||||
| Designation | DC | LU | PL | DCONMS | PDD | DF | LS | LPR | Insert(1) | Insert 1(2) |
| MNC 260-130 A32-150-06-5D | 26.00 | 132.93 | 2.93 | 32.00 | 15.00 | 42.00 | 60.0 | 166.92 | SOGX 060304-W | ICP 150 |
| MNC 265-132 A32-155-06-5D | 26.50 | 135.53 | 3.03 | 32.00 | 15.50 | 42.00 | 60.0 | 167.03 | SOGX 060304-W | ICP 155 |
| MNC 270-135 A32-160-06-5D | 27.00 | 138.10 | 3.10 | 32.00 | 16.00 | 42.00 | 60.0 | 170.10 | SOGX 060304-W | ICP 160 |
| MNC 280-140 A32-170-06-5D | 28.00 | 143.25 | 3.25 | 32.00 | 17.00 | 42.00 | 60.0 | 174.30 | SOGX 060304-W | ICP 170 |
| MNC 290-145 A32-160-07-5D | 29.00 | 148.10 | 3.10 | 32.00 | 16.00 | 42.00 | 60.0 | 180.11 | SOGX 070305-W | ICP 160 |
| MNC 295-148 A32-165-07-5D | 29.50 | 150.69 | 3.19 | 32.00 | 16.50 | 42.00 | 60.0 | 183.21 | SOGX 070305-W | ICP 165 |
| MNC 300-150 A32-165-07-5D | 30.00 | 153.19 | 3.19 | 32.00 | 16.50 | 42.00 | 60.0 | 186.21 | SOGX 070305-W | ICP 165 |
| MNC 310-155 A32-175-07-5D | 31.00 | 158.34 | 3.34 | 32.00 | 17.50 | 42.00 | 60.0 | 193.30 | SOGX 070305-W | ICP 175 |
| MNC 320-160 A32-185-07-5D | 32.00 | 163.49 | 3.49 | 32.00 | 18.50 | 42.00 | 60.0 | 198.50 | SOGX 070305-W | ICP 185 |
| MNC 330-165 A32-175-09-5D | 33.00 | 168.64 | 3.64 | 32.00 | 17.50 | 42.00 | 60.0 | 203.60 | SOGT 09T306-W | ICP 175 |
| MNC 340-170 A32-180-09-5D | 34.00 | 173.70 | 3.70 | 32.00 | 18.00 | 42.00 | 60.0 | 208.70 | SOGT 09T306-W | ICP 180 |
| MNC 350-175 A32-189-09-5D | 35.00 | 178.86 | 3.86 | 32.00 | 18.90 | 42.00 | 60.0 | 213.90 | SOGT 09T306-W | ICP 189 |
| MNC 360-180 A32-190-10-5D | 36.00 | 183.85 | 3.85 | 32.00 | 19.00 | 42.00 | 60.0 | 218.80 | SOGT 100408-W | ICP 190 |
| MNC 370-185 A32-200-10-5D | 37.00 | 189.01 | 4.01 | 32.00 | 20.00 | 42.00 | 60.0 | 224.00 | SOGT 100408-W | ICP 200 |
| MNC 375-188 A32-205-10-5D | 37.50 | 191.60 | 4.10 | 32.00 | 20.50 | 42.00 | 60.0 | 227.11 | SOGT 100408-W | ICP 205 |
| MNC 380-190 A40-209-10-5D | 38.00 | 194.17 | 4.17 | 40.00 | 20.90 | 50.00 | 68.0 | 231.21 | SOGT 100408-W | ICP 209 |
| MNC 390-195 A40-215-10-5D | 39.00 | 199.26 | 4.26 | 40.00 | 21.50 | 50.00 | 68.0 | 237.28 | SOGT 100408-W | ICP 215 |
| MNC 400-200 A40-225-10-5D | 40.00 | 204.41 | 4.41 | 40.00 | 22.50 | 50.00 | 68.0 | 244.36 | SOGT 100408-W | ICP 225 |
| MNC 405-203 A40-235-10-5D | 40.50 | 207.07 | 4.57 | 40.00 | 23.50 | 50.00 | 68.0 | 247.53 | SOGT 100408-W | ICP 235 |
| MNC 410-205 A40-239-10-5D | 41.00 | 209.64 | 4.64 | 40.00 | 23.90 | 50.00 | 68.0 | 249.64 | SOGT 100408-W | ICP 239 |
| MNC 420-210 A40-249-10-5D | 42.00 | 214.77 | 4.77 | 40.00 | 24.90 | 50.00 | 68.0 | 254.80 | SOGT 100408-W | ICP 249 |
| MNC 430-215 A40-259-10-5D | 43.00 | 219.99 | 4.99 | 40.00 | 25.90 | 50.00 | 68.0 | 263.00 | SOGT 100408-W | ICP 259 |
| MNC 440-220 A40-210-12-5D | 44.00 | 225.18 | 5.18 | 40.00 | 21.00 | 50.00 | 68.0 | 264.18 | SOGT 120408-W | ICP 210 |
| MNC 450-225 A40-219-12-5D | 45.00 | 230.33 | 5.33 | 40.00 | 21.90 | 50.00 | 68.0 | 269.38 | SOGT 120408-W | ICP 219 |
| MNC 460-230 A40-229-12-5D | 46.00 | 235.48 | 5.48 | 40.00 | 22.90 | 50.00 | 68.0 | 274.46 | SOGT 120408-W | ICP 229 |
| MNC 470-235 A40-239-12-5D | 47.00 | 240.64 | 5.64 | 40.00 | 23.90 | 50.00 | 68.0 | 280.63 | SOGT 120408-W | ICP 239 |
| MNC 480-240 A40-249-12-5D | 48.00 | 245.77 | 5.77 | 40.00 | 24.90 | 50.00 | 68.0 | 284.80 | SOGT 120408-W | ICP 249 |
| MNC 490-245 A40-259-12-5D | 49.00 | 250.99 | 5.99 | 40.00 | 25.90 | 50.00 | 68.0 | 292.00 | SOGT 120408-W | ICP 259 |
| MNC 500-250 A40-269-12-5D | 50.00 | 256.11 | 6.11 | 40.00 | 26.90 | 50.00 | 68.0 | 297.07 | SOGT 120408-W | ICP 269 |
- Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
- Intermediate sizes are available on
request For user guide and cutting conditions, see pages 68-81 (1) Outer insert (2) Central insert
For inserts, see pages: HCP-IQ (47) ICG (57) ICP (18) SOGT-W (67) SOGX-W (67)
Spare Parts
| Designation | |||||
| MNC 260-130 A32-150-06-5D | SR 34-508/L | T-7/51 | K MNC MULTI | ||
| MNC 265-132 A32-155-06-5D | SR 34-508/L | T-7/51 | K MNC MULTI | ||
| MNC 270-135 A32-160-06-5D | SR 34-508/L | T-7/51 | K MNC MULTI | ||
| MNC 280-140 A32-170-06-5D | SR 34-508/L | T-7/51 | K MNC MULTI | ||
| MNC 290-145 A32-160-07-5D | SR 14-560 | T-8/53 | K MNC MULTI | ||
| MNC 295-148 A32-165-07-5D | SR 14-560 | T-8/53 | K MNC MULTI | ||
| MNC 300-150 A32-165-07-5D | SR 14-560 | T-8/53 | K MNC MULTI | ||
| MNC 310-155 A32-175-07-5D | SR 14-560 | T-8/53 | K MNC MULTI | ||
| MNC 320-160 A32-185-07-5D | SR 14-560 | T-8/53 | K MNC MULTI | ||
| MNC 330-165 A32-175-09-5D | SR 34-506 | BLD T09/M7-SW4 | SW4-SD | K MNC MULTI | |
| MNC 340-170 A32-180-09-5D | SR 34-506 | BLD T09/M7-SW4 | SW4-SD | K MNC MULTI | |
| MNC 350-175 A32-189-09-5D | SR 34-506 | BLD T09/M7-SW4 | SW4-SD | K MNC MULTI | |
| MNC 360-180 A32-190-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC MULTI | |
| MNC 370-185 A32-200-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC MULTI | |
| MNC 375-188 A32-205-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC MULTI | |
| MNC 380-190 A40-209-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC MULTI | |
| MNC 390-195 A40-215-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC MULTI | |
| MNC 400-200 A40-225-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC 22-33 | |
| MNC 405-203 A40-235-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC 22-33 | |
| MNC 410-205 A40-239-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC 22-33 | |
| MNC 420-210 A40-249-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC 22-33 | |
| MNC 430-215 A40-259-10-5D | SR 14-571 | BLD T10/S7 | SW6-SD | K MNC 22-33 | |
| MNC 440-220 A40-210-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC MULTI | |
| MNC 450-225 A40-219-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC MULTI | |
| MNC 460-230 A40-229-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC 22-33 | |
| MNC 470-235 A40-239-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC 22-33 | |
| MNC 480-240 A40-249-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC 22-33 | |
| MNC 490-245 A40-259-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC 22-33 | |
| MNC 500-250 A40-269-12-5D | SR 14-544/S | BLD T15/S7 | SW6-SD | K MNC 22-33 |
