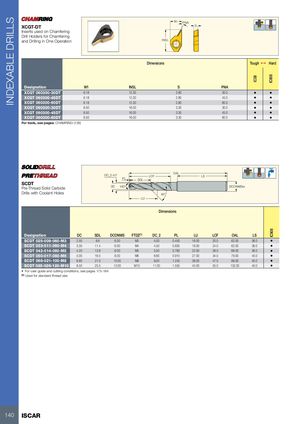

INDEXABLE DRILLS IC08 IC808IC908 W1 PNA XCGT-DT S Inserts used on Chamfering Drill Holders for Chamfering and Drilling in One Operation INSL Dimensions Tough 1  Hard Designation W1 INSL S PNA XCGT 060300-30DT 6.18 12.30 2.80 30.0 • • XCGT 060300-45DT 6.18 12.30 2.80 45.0 • • XCGT 060300-60DT 6.18 12.30 2.80 60.0 • • XCGT 090300-30DT 8.50 16.00 3.30 30.0 • • XCGT 090300-45DT 8.50 16.00 3.30 45.0 • • XCGT 090300-60DT 8.50 16.00 3.30 60.0 • • For tools, see pages: CHAMRING (139) DC_2 m7 OALLCF LS PL SDL SCDT Pre-Thread Solid Carbide DC 140° DCONMSh6 Drills with Coolant Holes 45° LU Dimensions Designation DC SDL DCONMS FTDZ(1) DC_2 PL LU LCF OAL LS SCDT 025-009-060-M3 2.50 8.8 6.00 M3 4.00 0.450 16.00 20.0 62.00 36.0 • SCDT 033-011-060-M4 3.30 11.4 6.00 M4 4.50 0.600 19.00 24.0 62.00 36.0 • SCDT 042-014-060-M5 4.20 13.6 6.00 M5 5.50 0.760 22.00 28.0 66.00 36.0 • SCDT 050-017-080-M6 5.00 16.5 8.00 M6 6.60 0.910 27.00 34.0 79.00 40.0 • SCDT 068-021-100-M8 6.80 21.0 10.00 M8 9.00 1.240 38.00 47.0 89.00 40.0 • SCDT 085-026-120-M10 8.50 25.5 12.00 M10 11.00 1.550 45.00 55.0 102.00 40.0 • • For user guide and cutting conditions, see pages 175-184 (1) Used for standard thread size 140 ISCAR
