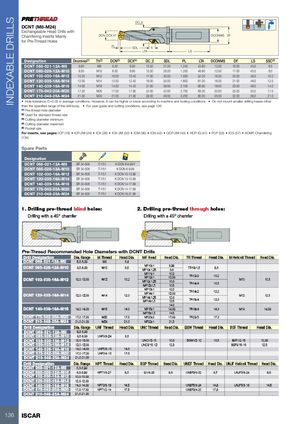

Каталог Iscar сверла со сменной режущей частью 2022 - страница 138
Навигация
Каталог Iscar монолитные фрезы 2022
Каталог Iscar токарный инструмент
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar токарный инструмент для нарезания канавок
Каталог Iscar полирующие фрезы
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
| DCNT (M8-M24) Exchangeable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes | DCN- | PL DCX k7 | SDL DC | LTA 6 2 | LS | DCONMS | DF | |||||
| Designation D | nominal(1) | Th(2) | DCN(3) | DCX(4) | DC2 | SDL | PL | LTA | DCONMS | DF | LS | SSC(5) |
| DCNT 068-021-12A-M8 | 6.80 | M8 | 6.50 | 6.90 | 13.50 | 21.00 | 1.240 | 43.80 | 12.00 | 16.00 | 45.0 | 6.5 |
| DCNT 085-026-12A-M10 | 8.50 | M10 | 8.50 | 8.90 | 15.50 | 26.00 | 1.200 | 48.80 | 12.00 | 17.00 | 45.0 | 8.0 |
| DCNT 102-030-16A-M12 | 10.20 | M12 | 10.00 | 10.40 | 17.00 | 30.00 | 1.500 | 52.50 | 16.00 | 20.00 | 48.0 | 10.0 |
| DCNT 120-035-16A-M14 | 12.00 | M14 | 12.00 | 12.40 | 19.00 | 35.00 | 1.800 | 61.00 | 16.00 | 21.00 | 48.0 | 12.0 |
| DCNT 140-039-16A-M16 | 14.00 | M16 | 14.00 | 14.40 | 21.00 | 39.00 | 2.100 | 66.90 | 16.00 | 23.00 | 48.0 | 14.0 |
| DCNT 175-042-20A-M20 | 17.50 | M20 | 17.00 | 17.90 | 24.00 | 42.00 | 2.700 | 69.30 | 20.00 | 25.00 | 50.0 | 17.0 |
| DCNT 210-048-25A-M24 | 21.00 | M24 | 21.00 | 21.90 | 28.00 | 48.00 | 3.200 | 80.00 | 25.00 | 32.00 | 56.0 | 21.0 |
- Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
- Do not mount smaller drilling heads other
than the specified range of the drill body. For user guide and cutting conditions, see page 136 (1) Pre-thread hole diameter (2) Used for standard thread size (3) Cutting diameter minimum (4) Cutting diameter maximum (5) Pocket size
For inserts, see pages: ICP (18) ICP-2M (24) ICK (28) ICK-2M (32) ICM (36) ICN (42) QCP-2M (43) HCP-IQ (47) FCP (52) ICG (57) AOMT-Chamfering (134)
Spare Parts
| Designation | |||
| DCNT 068-021-12A-M8 | SR 34-508 | T-7/51 | K DCN 6-9.99-Y |
| DCNT 085-026-12A-M10 | SR 34-508 | T-7/51 | K DCN 6-9.99 |
| DCNT 102-030-16A-M12 | SR 34-508 | T-7/51 | K DCN 10-13.99 |
| DCNT 120-035-16A-M14 | SR 34-508 | T-7/51 | K DCN 10-13.99 |
| DCNT 140-039-16A-M16 | SR 34-508 | T-7/51 | K DCN 14-17.99 |
| DCNT 175-042-20A-M20 | SR 34-508 | T-7/51 | K DCN 14-17.99 |
| DCNT 210-048-25A-M24 | SR 34-508 | T-7/51 | K DCN 18-21.99 |
