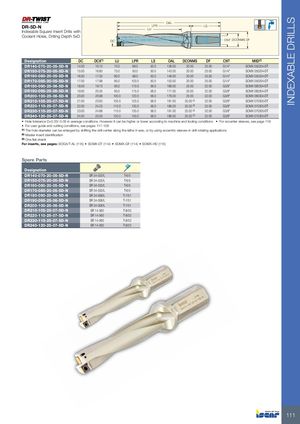

| DR-5D-N Indexable Square Insert Drills Coolant Holes, Drilling Depth | with 5xD | DC | LU LPR | OAL | LS | CNT | DCONMS DF | |||
| Designation | DC | DCX(1) | LU | LPR | LS | OAL | DCONMS | DF | CNT | MIID(2) |
| DR140-070-20-05-5D-N | 14.00 | 16.10 | 70.0 | 88.0 | 50.0 | 138.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR150-075-20-05-5D-N | 15.00 | 16.80 | 75.0 | 93.0 | 50.0 | 143.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR160-080-20-05-5D-N | 16.00 | 17.35 | 80.0 | 98.0 | 50.0 | 148.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR170-085-20-05-5D-N | 17.00 | 17.98 | 85.0 | 103.0 | 50.0 | 153.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR180-090-25-06-5D-N | 18.00 | 19.73 | 90.0 | 110.0 | 56.0 | 166.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR190-095-25-06-5D-N | 19.00 | 20.35 | 95.0 | 115.0 | 56.0 | 171.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR200-100-25-06-5D-N | 20.00 | 20.98 | 100.0 | 120.0 | 56.0 | 176.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR210-105-25-07-5D-N | 21.00 | 23.63 | 105.0 | 125.0 | 56.0 | 181.00 | 25.00(3) | 32.00 | G3/8" | SOMX 070305-DT |
| DR220-110-25-07-5D-N | 22.00 | 24.25 | 110.0 | 130.0 | 56.0 | 186.00 | 25.00(3) | 32.00 | G3/8" | SOMX 070305-DT |
| DR230-115-25-07-5D-N | 23.00 | 24.88 | 115.0 | 135.0 | 56.0 | 191.00 | 25.00(3) | 32.00 | G3/8" | SOMX 070305-DT |
| DR240-120-25-07-5D-N | 24.00 | 25.50 | 120.0 | 140.0 | 56.0 | 196.00 | 25.00(3) | 32.00 | G3/8" | SOMX 070305-DT |
- Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions
- For eccenter sleeves, see page 118
- For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications (2) Master insert identification (3) One flat shank
For inserts, see pages: SOGX/T-AL (115) SOMX-DT (114) SOMX-GF (114) SOMX-HD (115)
Spare Parts
| Designation | ||
| DR140-070-20-05-5D-N | SR 34-533/L | T-6/5 |
| DR150-075-20-05-5D-N | SR 34-533/L | T-6/5 |
| DR160-080-20-05-5D-N | SR 34-533/L | T-6/5 |
| DR170-085-20-05-5D-N | SR 34-533/L | T-6/5 |
| DR180-090-25-06-5D-N | SR 34-508/L | T-7/51 |
| DR190-095-25-06-5D-N | SR 34-508/L | T-7/51 |
| DR200-100-25-06-5D-N | SR 34-508/L | T-7/51 |
| DR210-105-25-07-5D-N | SR 14-560 | T-8/53 |
| DR220-110-25-07-5D-N | SR 14-560 | T-8/53 |
| DR230-115-25-07-5D-N | SR 14-560 | T-8/53 |
| DR240-120-25-07-5D-N | SR 14-560 | T-8/53 |
