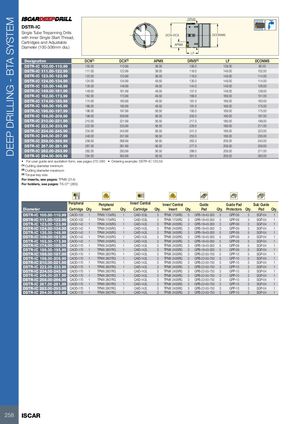

| STR-IC ingle Tube Trepanning Drills ith Inner Single Start Thread, artridges and Adjustable iameter (100-306mm dia.) | DCN-DCX APMX | DRVS LF | DCONMS | ||||
| Designation | DCN(1) | DCX(2) | APMX | DRVS(3) | LF | DCONMS | |
| DSTR-IC 100.00-110.99 | 100.00 | 110.99 | 38.00 | 106.0 | 139.00 | 90.00 | |
| DSTR-IC 111.00-122.99 | 111.00 | 122.99 | 38.00 | 118.0 | 149.00 | 102.00 | |
| DSTR-IC 123.00-123.99 | 123.00 | 123.99 | 38.00 | 119.0 | 149.00 | 114.00 | |
| DSTR-IC 124.00-134.99 | 124.00 | 134.99 | 49.50 | 130.0 | 149.00 | 114.00 | |
| DSTR-IC 135.00-148.99 | 135.00 | 148.99 | 49.50 | 144.0 | 149.00 | 126.00 | |
| DSTR-IC 149.00-161.99 | 149.00 | 161.99 | 49.50 | 157.0 | 149.00 | 139.00 | |
| DSTR-IC 162.00-173.99 | 162.00 | 173.99 | 49.50 | 169.0 | 169.00 | 151.00 | |
| DSTR-IC 174.00-185.99 | 174.00 | 185.99 | 49.50 | 181.0 | 169.00 | 163.00 | |
| DSTR-IC 186.00-195.99 | 186.00 | 195.99 | 49.50 | 191.0 | 169.00 | 175.00 | |
| DSTR-IC 196.00-197.99 | 196.00 | 197.99 | 56.50 | 193.0 | 169.00 | 175.00 | |
| DSTR-IC 198.00-209.99 | 198.00 | 209.99 | 56.50 | 205.0 | 169.00 | 187.00 | |
| DSTR-IC 210.00-221.99 | 210.00 | 221.99 | 56.50 | 217.0 | 189.00 | 199.00 | |
| DSTR-IC 222.00-233.99 | 222.00 | 233.99 | 56.50 | 229.0 | 189.00 | 211.00 | |
| DSTR-IC 234.00-245.99 | 234.00 | 245.99 | 56.50 | 241.0 | 189.00 | 223.00 | |
| DSTR-IC 246.00-257.99 | 246.00 | 257.99 | 56.50 | 253.0 | 189.00 | 235.00 | |
| DSTR-IC 258.00-266.99 | 258.00 | 266.99 | 56.50 | 262.0 | 209.00 | 245.00 | |
| DSTR-IC 267.00-281.99 | 267.00 | 281.99 | 56.50 | 277.0 | 209.00 | 259.00 | |
| DSTR-IC 282.00-293.99 | 282.00 | 293.99 | 56.50 | 289.0 | 209.00 | 271.00 | |
| DSTR-IC 294.00-305.99 | 294.00 | 305.99 | 56.50 | 301.0 | 209.00 | 283.00 |
- For user guide and quotation form, see pages 272-280
- Ordering example: DSTR-IC 120.55
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Torque key size
For inserts, see pages: TPMX (214)
For holders, see pages: TS-O** (265)
| Peripheral | Peripheral | Inner/ Central | Inner/ Central | Guide | Guide Pad | Sub Guide | |||||||
| Diameter | Cartridge | Qty. | Insert | Qty. | Cartridge | Qty. | Insert | Qty. | Pad | Qty. Protectors | Qty | . Pad | Qty. |
| DSTR-IC 100.00-110.99 | CAOD-103 | 1 | TPMX 1704RG | 1 | CAID-103L | 3 | TPMX 1704RG | 3 | GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-IC 111.00-122.99 | CAOD-103 | 1 | TPMX 1704RG | 1 | CAID-103L | 3 | TPMX 1704RG | 3 | GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-IC 123.00-123.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-IC 124.00-134.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-IC 135.00-148.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-IC 149.00-161.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-IC 162.00-173.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-IC 174.00-185.99 | CAOD-170 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-IC 186.00-195.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-IC 196.00-197.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 5 GPP-10 | 5 | SGP-04 | 1 |
| DSTR-IC 198.00-209.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 5 GPP-10 | 5 | SGP-04 | 1 |
| DSTR-IC 210.00-221.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 222.00-233.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 234.00-245.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 246.00-257.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 258.00-266.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 267.00-281.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 282.00-293.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-IC 294.00-305.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 | TPMX 2405RG | 3 | GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
