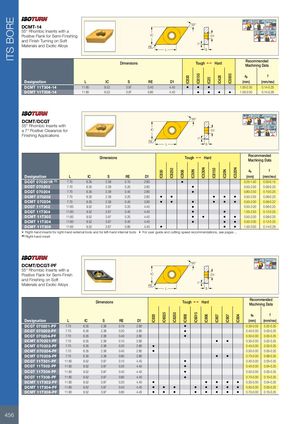

Каталог Iscar расточные системы 2022 - страница 74

ITS BORE 107.5° 29° MAX 93º-95º 55° DCMT-14 91° 50º MAX 55° Rhombic Inserts with a 27° 60° MAX MAX Positive Flank for Semi-Finishing IC D1 93 º 62.5 º and Finish Turning on Soft 7° Materials and Exotic Alloys RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8150 IC5005 IC830 IC428 IC20 Designation L IC S RE D1 (mm) (mm/rev) DCMT 11T304-14 11.60 9.52 3.97 0.40 4.40 • • • 1.00-2.50 0.14-0.25 DCMT 11T308-14 11.60 9.52 3.97 0.80 4.40 • • • • 1.50-3.00 0.14-0.29 107.5° 29° MAX 93º-95º 55° DCMT/DCGT 91° 50º MAX 55° Rhombic Inserts with 27° 60° MAX MAX a 7° Positive Clearance for IC D1 93 º 62.5 º Finishing Applications 7° RE L S Recommended Dimensions Tough 1 Hard Machining Data IC530N IC520N IC8250 ap f IC8150 IC30N IC20N IC830 IC908 Designation L IC S RE D1 (mm) (mm/rev) DCGT 070201R (1) 7.70 6.35 2.38 0.10 2.80 • 0.25-1.50 0.05-0.15 DCGT 070202 7.70 6.35 2.38 0.20 2.80 • 0.50-2.00 0.08-0.20 DCGT 070204 7.70 6.35 2.38 0.40 2.80 • 0.80-2.50 0.10-0.25 DCMT 070202 7.70 6.35 2.38 0.20 2.80 • • • • • 0.50-2.00 0.08-0.20 DCMT 070204 7.70 6.35 2.38 0.40 2.80 • • • • • • 0.50-2.00 0.08-0.22 DCGT 11T302 11.60 9.52 3.97 0.20 4.40 • 0.50-2.00 0.08-0.20 DCGT 11T304 11.60 9.52 3.97 0.40 4.40 • • 1.00-2.50 0.12-0.25 DCMT 11T302 11.60 9.52 3.97 0.20 4.40 • • • • 0.50-2.00 0.08-0.20 DCMT 11T304 11.60 9.52 3.97 0.40 4.40 • • • 0.50-2.00 0.12-0.25 DCMT 11T308 11.60 9.52 3.97 0.80 4.40 • • • 1.50-3.00 0.14-0.29 • Right-hand inserts for right-hand external tools and for left-hand internal tools • For user guide and cutting speed recommendations, see pages .. (1) Right-hand insert 107.5° 93º-95º 55° DCMT/DCGT-PF 50º MAX 55° Rhombic Inserts with a Positive Flank for Semi-Finish IC D1 and Finishing on Soft 7° Materials and Exotic Alloys RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC8250 IC6015 IC830 IC908 IC806 IC807 IC907 IC804 Designation L IC S RE D1 (mm) (mm/rev) DCGT 070201-PF 7.70 6.35 2.38 0.10 2.80 • 0.30-3.00 0.02-0.25 DCGT 070202-PF 7.70 6.35 2.38 0.20 2.80 • 0.40-3.00 0.03-0.25 DCGT 070204-PF 7.70 6.35 2.38 0.40 2.80 • 0.50-3.00 0.05-0.25 DCMT 070201-PF 7.70 6.35 2.38 0.10 2.80 • • 0.30-3.00 0.02-0.25 DCMT 070202-PF 7.70 6.35 2.38 0.20 2.80 • 0.40-3.00 0.03-0.25 DCMT 070204-PF 7.70 6.35 2.38 0.40 2.80 • 0.50-3.00 0.05-0.25 DCMT 070208-PF 7.70 6.35 2.38 0.80 2.80 • • 0.70-3.00 0.08-0.25 DCGT 11T301-PF 11.60 9.52 3.97 0.10 4.40 • 0.30-3.00 0.03-0.25 DCGT 11T302-PF 11.60 9.52 3.97 0.20 4.40 • 0.40-3.00 0.04-0.25 DCGT 11T304-PF 11.60 9.52 3.97 0.40 4.40 • 0.50-3.00 0.05-0.25 DCGT 11T308-PF 11.60 9.52 3.97 0.80 4.40 • 0.70-3.00 0.10-0.25 DCMT 11T302-PF 11.60 9.52 3.97 0.20 4.40 • • • • • 0.30-3.00 0.04-0.25 DCMT 11T304-PF 11.60 9.52 3.97 0.40 4.40 • • • • • • • • 0.50-3.00 0.05-0.25 DCMT 11T308-PF 11.60 9.52 3.97 0.80 4.40 • • • • • • • • 0.70-3.00 0.10-0.25 456
