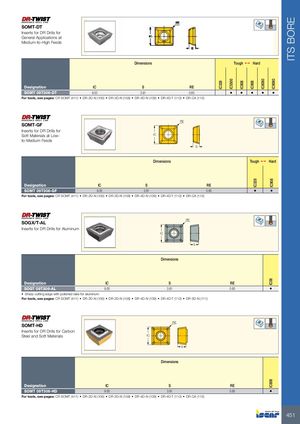

Каталог Iscar расточные системы 2022 - страница 69

ITS BORE SOMT-DT Inserts for DR Drills for General Applications at Medium-to-High Feeds Dimensions Tough 1 Hard IC5500 IC8080 IC9080 IC328 IC808 IC908 Designation IC S RE SOMT 09T306-DT 9.00 3.81 0.60 • • • • • For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) RE SOMT-GF Inserts for DR Drills for Soft Materials at Low- IC to-Medium Feeds S Dimensions Tough 1 Hard IC328 IC908 Designation IC S RE SOMT 09T306-GF 9.00 3.81 0.60 • • For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) RE SOGX/T-AL Inserts for DR Drills for Aluminum IC S Dimensions IC08 Designation IC S RE SOGT 09T306-AL 9.00 3.81 0.60 • • Sharp cutting edge with polished rake for aluminum For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) RE SOMT-HD Inserts for DR Drills for Carbon Steel and Soft Materials IC S Dimensions IC808 Designation IC S RE SOMT 09T306-HD 9.00 3.81 0.60 • For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) 451
