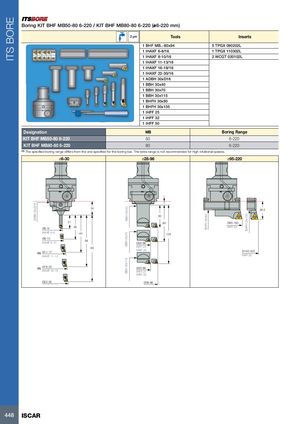

ITS BORE Boring KIT BHF MB50-80 6-220 / KIT BHF MB80-80 6-220 (ø6-220 mm) 2 µm Tools Inserts 1 BHF MB..-80x94 5 TPGX 090202L 1 IHAXF 6-8/16 1 TPGX 110302L 1 IHAXF 8-10/16 2 WCGT 020102L 1 IHAXF 11-13/16 1 IHAXF 16-18/16 1 IHAXF 22-30/16 1 ADBH 30xD16 1 BBH 30x40 1 BBH 30x70 1 BBH 30x115 1 BHFH 30x93 1 BHFH 30x135 1 IHFF 25 1 IHFF 32 1 IHFF 50 Designation MB Boring Range KIT BHF MB50-80 6-220 50 6-220 KIT BHF MB80-80 6-220 80 6-220 (1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds. ø6-30 ø28-96 ø95-220 89 89 89 01 2 01 2 01 2 5 67 5 67 5 67 34 34 34 7 ADBH 30xD16 24 BBH 30x40 38.5 BHFH 30x135 BHFH 30x93 50 21 80 Ø95-160 28 IHFF 50 Ø6- 8 IHAXF 6-8 40 BBH 30x70 125 Ø8-10 58 IHAXF 8-10 Ø28-86 68 IHFF 25 IHRF 25 Ø140-220 (1) Ø11-17 IHAXF 11-13 IHFF 50 BBH 30x115 Ø16-23 Ø30-86 (1) IHAXF 16-18 IHFF 25 IHRF 25 Ø22-30 Ø36-96 IHAXF 22-30 IHFF 32 IHRF 32 448 ISCAR
