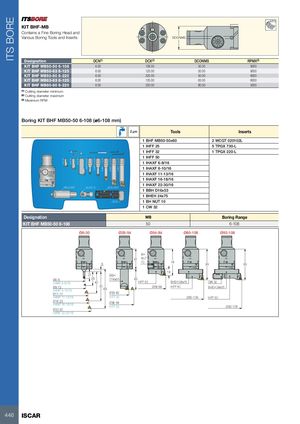

ITS BORE KITS KIT BHF-MB Contains a Fine Boring Head and Various Boring Tools and Inserts DCONMS 0 12 89 34 567 Designation DCN(1) DCX(2) DCONMS RPMX(3) KIT BHF MB50-50 6-108 6.00 108.00 50.00 8000 KIT BHF MB50-63 6-125 6.00 125.00 50.00 8000 KIT BHF MB50-80 6-220 6.00 220.00 50.00 8000 KIT BHF MB63-63 6-125 6.00 125.00 63.00 6000 KIT BHF MB80-80 6-220 6.00 220.00 80.00 5000 (1) Cutting diameter minimum (2) Cutting diameter maximum (3) Maximum RPM Boring KIT BHF MB50-50 6-108 (ø6-108 mm) 2 µm Tools Inserts 1 BHF MB50-50x60 2 WCGT 020102L 1 IHFF 25 5 TPGX 730-L 1 IHFF 32 1 TPGX 220-L 1 IHFF 50 IHFF 25 IHFF 32 IHFF 50 IHAXF 6-8/16 IHAXF 8-10/16 IHAXF 11-13/16 IHAXF 16-18/16 IHAXF 22-30/16 1 IHAXF 6-8/16 1 IHAXF 8-10/16 BHF 50 Ø 2.5-108 0.5 Ø 0.002 Ø 1 IHAXF 11-13/16 LOCK 1 IHAXF 16-18/16 BBH D16x53 BH NUT 10 BHEH 24x75 1 IHAXF 22-30/16 1 BBH D16x53 1 BHEH 24x75 CW 32 1 BH NUT 10 1 CW 32 Designation MB Boring Range KIT BHF MB50-50 6-108 50 6-108 Ø6-30 Ø28-54 Ø54-84 Ø80-108 Ø92-108 BHF 50 BHF 50 BHF 50 BHF 50 BHF 50 Ø 2.5-108 0.1 Ø Ø 2.5-108 0.1 Ø BH Ø 2.5-108 0.1 Ø Ø 2.5-108 0.1 Ø Ø 2.5-108 0.1 Ø 0.002 Ø 0.002 Ø 61 NUT 0.002 Ø 0.002 Ø 0.002 Ø LOCK LOCK LOCK LOCK LOCK 10 79 8 93 93 19 21 BBH ¯6-8Ê 28 D16x53Ê 63 IHAXFÊ6-8/16Ê 40 IHFFÊ50 BHEHÊ24x75 CWÊ32 ¯8-12Ê 50 ¯54-84 IHFFÊ50 BHEHÊ24x75 IHAXFÊ8-10/16Ê 68 ¯11-17Ê ¯28-42 IHAXFÊ11-13/16Ê IHFFÊ25 ¯80-108 IHFFÊ50 ¯16-23Ê ¯36-54 IHAXFÊ16-18/16Ê IHFFÊ32 ¯92-108 ¯22-30Ê IHAXFÊ22-30/16Ê 446 ISCAR
