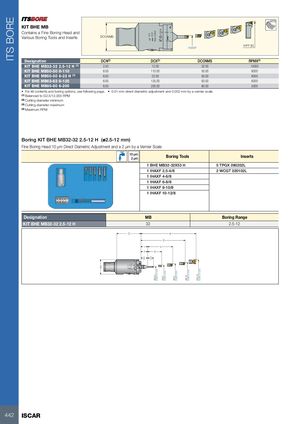

ITS BORE KITS KIT BHE MB LOCK Contains a Fine Boring Head and Non. 0.002 0.01 0.5 Various Boring Tools and Inserts DCONMS IHFF (E) IHAXF Designation DCN(2) DCX(3) DCONMS RPMX(4) KIT BHE MB32-32 2.5-12 H (1) 2.50 12.00 32.00 10000 KIT BHE MB50-50 6-110 6.00 110.00 50.00 8000 KIT BHE MB50-50 6-22 H (1) 6.00 22.00 50.00 8000 KIT BHE MB63-63 6-125 6.00 125.00 63.00 6000 KIT BHE MB80-80 6-200 6.00 200.00 80.00 5000 • For kit contents and boring options, see following page. • 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale. (1) Balanced to G2.5/12,000 RPM (2) Cutting diameter minimum (3) Cutting diameter maximum (4) Maximum RPM Boring KIT BHE MB32-32 2.5-12 H (ø2.5-12 mm) Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale 10 µm 2 µm Boring Tools Inserts 1 BHE MB32-32X53 H 5 TPGX 090202L 1 IHAXF 2.5-4/8 2 WCGT 020102L 1 IHAXF 4-6/8 1 IHAXF 6-8/8 1 IHAXF 8-10/8 1 IHAXF 10-12/8 Designation MB Boring Range KIT BHE MB32-32 2.5-12 H 32 2.5-12 53 36 28 21 2 12 20 12.5 16.5 LOCK Non. 0.002 0.01 0.5 Ø32 IHAXF 10-12/8 IHAXF 2.5-4/8 IHAXF 8-10/8 IHAXF 4-6/8 IHAXF 6-8/8 Ø10-12 Ø2.5-4 Ø8-10 Ø4-6 Ø6-8 442 ISCAR
