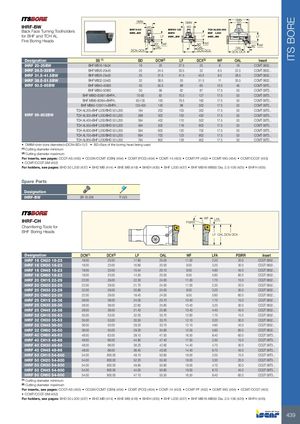

| IHRF-BW Back Face Turning Toolhol for BHF and TCH AL Fine Boring Heads | ders | DMIN BD LF OAL DCN-DCX WF 90° BHF16-50 IHRF...BW | BHF63-125 BHFH IHRF...BW | DMIN BD LF OAL DCN- 90° | WF DCX TCH AL200-800 BHF L200 IHRF...BW | DMIN BD OAL DCN-DCX | LF WF 90° |
| Designation | SS(1) | BD DCN(2) | LF | DCX(3) | WF | OAL | Insert |
| IHRF 20-25BW | BHF MB16-16x34 | 16 20 | 27.5 | 25 | 8 | 18 | CCMT 0602... |
| IHRF 24.5-32BW | BHF MB20-20x40 | 20 24.5 | 33.5 | 32 | 8.5 | 22.5 | CCMT 0602... |
| IHRF 31.5-41.5BW | BHF MB25-25x50 | 25 31.5 | 41.5 | 40.5 | 9.5 | 28.5 | CCMT 0602... |
| IHRF 38.5-51.5BW | BHF MB32-32x63 | 32 38.5 | 53 | 51.5 | 11 | 35.5 | CCMT 0602... |
| IHRF 50.5-65BW | BHF MB40-40X80 | 40 50.5 | 68 | 65 | 13.5 | 46 | CCMT 09T3... |
| BHF MB50-50X60 | 50 56 | 62 | 87 | 17.5 | 53 | CCMT 09T3... | |
| BHF MB63-63X87+BHFH… | 75-93 82 | 70.5 | 127 | 17.5 | 53 | CCMT 09T3... | |
| BHF MB80-80X94+BHFH… | 93-135 100 | 79.5 | 162 | 17.5 | 53 | CCMT 09T3... | |
| BHF MB80-125X114+BHFH... | 133-400 140 | 98 | 502 | 17.5 | 53 | CCMT 09T3... | |
| TCH AL200+BHF L200/BHD 50 L200 | 194 202 | 103 | 302 | 17.5 | 53 | CCMT 09T3... | |
| IHRF 56-802BW | TCH AL300+BHF L200/BHD 50 L200 | 288 302 | 103 | 402 | 17.5 | 53 | CCMT 09T3... |
| TCH AL400+BHF L200/BHD 50 L200 | 394 402 | 110 | 502 | 17.5 | 53 | CCMT 09T3... | |
| TCH AL500+BHF L200/BHD 50 L200 | 494 502 | 118 | 602 | 17.5 | 53 | CCMT 09T3... | |
| TCH AL600+BHF L200/BHD 50 L200 | 594 602 | 120 | 702 | 17.5 | 53 | CCMT 09T3... | |
| TCH AL700+BHF L200/BHD 50 L200 | 694 702 | 123 | 802 | 17.5 | 53 | CCMT 09T3... | |
| TCH AL800+BHF L200/BHD 50 L200 | 794 802 | 129 | 902 | 17.5 | 53 | CCMT 09T3... |
- DMIM=(min bore diameter)=(DCN+BD+1)/2
- BD=Size of the boring head being used
(1) Cutting diameter minimum (2) Cutting diameter maximum
For inserts, see pages: CCGT-AS (455) CCGW/CCMT (CBN) (454) CCMT (PCD) (454) CCMT-14 (453) CCMT-PF (452) CCMT-WG (454) CCMT/CCGT (453)
- CCMT/CCGT-SM (452)
For holders, see pages: BHD 50 L200 (437) BHD MB (414) BHE MB (418) BHEH (435) BHF L200 (437) BHF MB16-MB50 Dia. 2.5-108 (425) BHFH (435)
Spare Parts
| Designation | ||||||||
| IHRF-BW | SR 16-236 | T-1 | 5/5 | |||||
| IHRF-CH | PSIRR | LFA WF | ||||||
| Chamfering Tools for BHF Boring Heads | 1 0 9 8 7 6 5 4 3 2 | LF OAL D | CN-DCX | |||||
| Designation | DCN(1) | DCX(2) | LF | OAL | WF | LFA | PSIRR | Insert |
| IHRF 16 CH20 18-23 | 18.00 | 23.00 | 17.80 | 20.00 | 11.00 | 2.20 | 20.0 | CCGT 0602... |
| IHRF 16 CH30 18-23 | 18.00 | 23.00 | 16.80 | 20.00 | 9.00 | 3.20 | 30.0 | CCGT 0602... |
| IHRF 16 CH45 18-23 | 18.00 | 23.00 | 15.54 | 20.10 | 9.50 | 4.60 | 45.0 | CCGT 0602... |
| IHRF 16 CH60 18-23 | 18.00 | 23.00 | 14.50 | 20.00 | 9.50 | 5.60 | 60.0 | CCGT 0602... |
| IHRF 20 CH15 22-29 | 22.00 | 29.00 | 22.30 | 24.00 | 11.00 | 1.70 | 15.0 | CCGT 0602... |
| IHRF 20 CH20 22-29 | 22.00 | 29.00 | 21.70 | 24.00 | 11.00 | 2.20 | 20.0 | CCGT 0602... |
| IHRF 20 CH30 22-29 | 22.00 | 29.00 | 20.80 | 24.00 | 9.00 | 3.20 | 30.0 | CCGT 0602... |
| IHRF 20 CH60 22-29 | 22.00 | 29.00 | 18.40 | 24.00 | 9.50 | 5.60 | 60.0 | CCGT 0602... |
| IHRF 25 CH15 28-38 | 28.00 | 38.00 | 24.00 | 25.70 | 10.40 | 1.70 | 15.0 | CCGT 0602... |
| IHRF 25 CH30 28-38 | 28.00 | 38.00 | 22.60 | 25.60 | 10.40 | 3.20 | 30.0 | CCGT 0602... |
| IHRF 25 CH45 28-38 | 28.00 | 38.00 | 21.40 | 25.90 | 10.40 | 4.40 | 45.0 | CCGT 0602... |
| IHRF 32 CH15 35-53 | 35.00 | 53.00 | 32.00 | 33.70 | 12.60 | 1.70 | 15.0 | CCGT 0602... |
| IHRF 32 CH30 35-53 | 35.00 | 53.00 | 30.50 | 33.70 | 12.10 | 3.20 | 30.0 | CCGT 0602... |
| IHRF 32 CH45 36-50 | 36.00 | 50.00 | 29.20 | 33.70 | 12.10 | 4.60 | 45.0 | CCGT 0602... |
| IHRF 32 CH60 36-50 | 36.00 | 50.00 | 29.30 | 34.80 | 12.00 | 5.60 | 60.0 | CCGT 0602... |
| IHRF 40 CH60 48-63 | 48.00 | 63.00 | 39.10 | 47.50 | 16.50 | 8.40 | 60.0 | CCGT 09T3... |
| IHRF 40 CH15 48-66 | 48.00 | 66.00 | 44.90 | 47.40 | 17.50 | 2.50 | 15.0 | CCGT 09T3... |
| IHRF 40 CH30 48-66 | 48.00 | 66.00 | 38.20 | 42.90 | 14.40 | 4.70 | 30.0 | CCGT 09T3... |
| IHRF 40 CH45 48-66 | 48.00 | 66.00 | 36.40 | 43.00 | 14.40 | 6.70 | 45.0 | CCGT 09T3... |
| IHRF 50 CH15 54-800 | 54.00 | 800.00 | 48.10 | 50.60 | 19.00 | 2.50 | 15.0 | CCGT 09T3... |
| IHRF 50 CH20 54-800 | 54.00 | 800.00 | 52.20 | 55.50 | 18.00 | 3.30 | 20.0 | CCGT 09T3... |
| IHRF 50 CH30 54-800 | 54.00 | 800.00 | 49.95 | 50.80 | 19.00 | 4.70 | 30.0 | CCGT 09T3... |
| IHRF 50 CH45 54-800 | 54.00 | 800.00 | 44.00 | 50.60 | 19.00 | 6.70 | 45.0 | CCGT 09T3... |
| IHRF 50 CH60 54-800 | 54.00 | 800.00 | 47.10 | 55.50 | 16.50 | 8.40 | 60.0 | CCGT 09T3... |
(1) Cutting diameter minimum
For inserts, see pages: CCGT-AS (455) CCGW/CCMT (CBN) (454) CCMT (PCD) (454) CCMT-14 (453) CCMT-PF (452) CCMT-WG (454) CCMT/CCGT (453)
- CCMT/CCGT-SM (452)
For holders, see pages: BHD 50 L200 (437) BHD MB (414) BHE MB (418) BHEH (435) BHF L200 (437) BHF MB16-MB50 Dia. 2.5-108 (425) BHFH (435)
