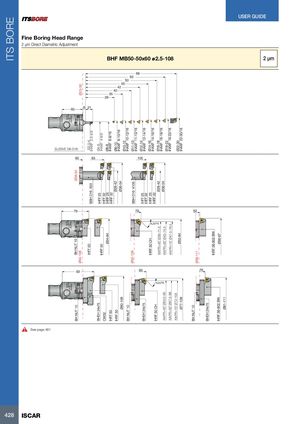

428 ITS BORE s ISCAR ! See page 481 2 µm Direct Diametric Adjustment SLEEVE D8-D16 Fine Boring Head Range Ø2.5-4 IHAXF 2.5-4/8 Ø4-6 IHAXF 4-6/8 KAPR KAPR=45˚ Ø39-71.5 KAPR KAPR=45˚ Ø63.5-95 KAPR=30˚ Ø43-74.5 KAPR=30˚ Ø67.5-99 KAPR=15˚ Ø47.5-79.5 BHF MB50-50x60 ø2.5-108 KAPR=15˚ Ø72-104 USER GUIDE 2 µm
