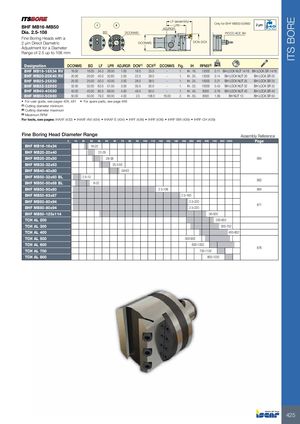

Каталог Iscar расточные системы 2022

BHF MB16-MB50			1	2				LF (a L ADJRGR	ssembl PR	y)		Only f	or BHF MB50-50X60	2 µm 40 Bar Max
Dia. 2.5-108			BD		DCO	NWS							PICCO ACE BH
Fine Boring Heads with a 2 µm Direct Diametric Adjustment for a Diameter Range of 2.5 up to 108 m	m					DCO	NMS	0.1ø 0.002ø	LOCK	DC	N-DCX
Designation	DCONMS	BD	LF	LPR	ADJRGR	DCN(1)	DCX(2)	DCONWS	Fig.	IH	RPMX(3)	kg
BHF MB16-16X34 RV	16.00	16.00	34.0	26.00	1.00	18.0	23.0	-	1.	IH.. 16..	12000	0.11	BH LOCK NUT 14/16	BH LOCK SR 14/16
BHF MB20-20X40 RV	20.00	20.00	40.0	32.60	2.00	22.0	29.0	-	1.	IH.. 20..	12000	0.14	BH LOCK NUT 20	BH LOCK SR 20
BHF MB25-25X50	25.00	25.00	50.0	40.00	2.00	28.0	38.0	-	1.	IH.. 25..	10000	0.21	BH LOCK NUT 25	BH LOCK SR 25
BHF MB32-32X63	32.00	32.00	63.0	51.50	3.00	35.5	50.0	-	1.	IH.. 32..	10000	0.43	BH LOCK NUT 32	BH LOCK SR 32
BHF MB40-40X80	40.00	40.00	80.0	66.00	4.00	48.0	63.0	-	1.	IH.. 40..	8000	0.79	BH LOCK NUT 40	BH LOCK SR 40
BHF MB50-50X60	50.00	50.00	79.0	60.00	4.00	2.5	108.0	16.00	2.	IH.. 50..	8000	1.09	BH NUT 10	BH LOCK SR 50

(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Maximum RPM

For tools, see pages: IHAXF (432) IHAXF-AVI (434) IHAXF-E (434) IHFF (436) IHRF (436) IHRF-BW (439) IHRF-CH (439)
