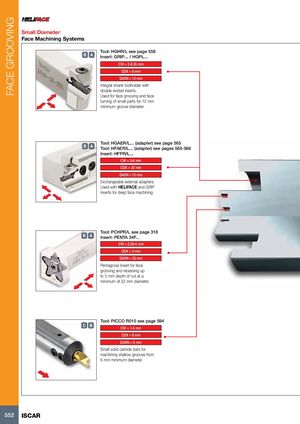

Small Diameter

Face Machining Systems

B A

Tool: HGHR/L see page 558 Insert: GRIP… / HGPL… CW = 3-6.35 mm CDX = 6 mm DAXN = 12 mm Integral shank toolholder with double-ended inserts. Used for face grooving and face turning of small parts for 12 mm minimum groove diameter.

Tool: HGAER/L… (adapter) see page 565

B A …

Tool: HFAER/L (adapter) see pages 565-566 Insert: HFPR/L… CW = 3-6 mm CDX = 32 mm DAXN = 12 mm Exchangeable external adapters. Used with HELIFACE and GRIP inserts for deep face machining.

Tool: PCHPR/L see page 316

B A Insert: PENTA 34F...

CW = 2.39-4 mm CDX = 5 mm DAXN = 22 mm Pentagonal insert for face grooving and recessing up to 5 mm depth of cut at a minimum of 22 mm diameter.

Tool: PICCO R010 see page 594 C B CW = 1-5 mm CDX = 6 mm DAXN = 6 mm Small solid carbide bars for machining shallow grooves from 6 mm minimum diameter.
