PARTING

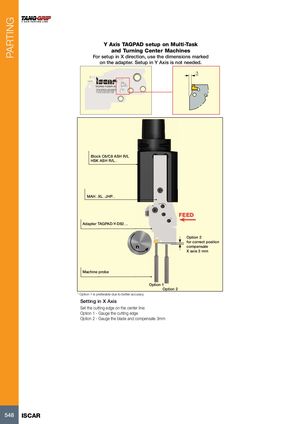

Y Axis TAGPAD setup on Multi-Task
and Turning Center Machines
For setup in X direction, use the dimensions marked
on the adapter. Setup in Y Axis is not needed.
3


Block C6/C8 ASH R/L
HSK ASH R/L…


MAH…XL…JHP…


FEED
Adapter TAGPAD-Y-D82….

Option 2
for correct postion
n compensate
X axis 3 mm


Machine probe

Option 1
Option 2
* Option 1 is preferable due to better accuracy
Setting in X Axis
Set the cutting edge on the center line:
Option 1 - Gauge the cutting edge
Option 2 - Gauge the blade and compensate 3mm
