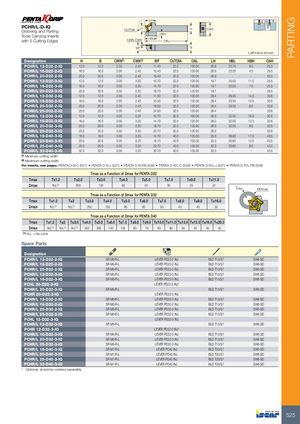

Каталог Iscar отрезка 2022 - страница 67
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| PCHR/L-D-IQ | C | H TDIA | LH | H | OAH | ||||||
| Grooving and Parting | HBH | ||||||||||
| Tools Carrying Inserts with 5 Cutting Edges | CWN-CWX WF | O HBL | AL | B | |||||||
| Left-ha | nd shown | ||||||||||
| Designation | H | B | CWN(1) | CWX(2) | WF | CUTDIA | OAL | LH | HBL | HBH | OAH |
| PCHR/L 12-D22-2-IQ | 12.0 | 12.0 | 2.00 | 2.40 | 11.40 | 22.0 | 100.00 | 26.9 | 25.70 | 8.0 | 25.5 |
| PCHR/L 16-D22-2-IQ | 16.0 | 16.0 | 2.00 | 2.40 | 15.40 | 22.0 | 120.00 | 26.9 | 23.20 | 4.0 | 25.5 |
| PCHR/L 20-D22-2-IQ | 20.0 | 20.0 | 2.00 | 2.40 | 19.40 | 22.0 | 120.00 | 26.9 | - | - | 25.5 |
| PCHR/L 12-D22-3-IQ | 12.0 | 12.0 | 3.00 | 3.20 | 10.70 | 22.0 | 120.00 | 19.7 | 20.00 | 11.0 | 25.5 |
| PCHR/L 16-D22-3-IQ | 16.0 | 16.0 | 3.00 | 3.20 | 14.70 | 22.0 | 120.00 | 19.7 | 20.00 | 7.0 | 25.5 |
| PCHR/L 20-D22-3-IQ | 20.0 | 20.0 | 3.00 | 3.20 | 18.70 | 22.0 | 120.00 | 19.7 | - | - | 25.5 |
| PCHR/L 12-D32-2-IQ | 12.0 | 12.0 | 2.00 | 2.40 | 11.50 | 32.0 | 100.00 | 28.4 | 29.50 | 14.0 | 33.6 |
| PCHR/L 16-D32-2-IQ | 16.0 | 16.0 | 2.00 | 2.40 | 15.50 | 32.0 | 120.00 | 28.4 | 29.50 | 10.0 | 33.6 |
| PCHR/L 20-D32-2-IQ | 20.0 | 20.0 | 2.00 | 2.40 | 19.50 | 32.0 | 120.00 | 28.4 | 29.50 | 6.0 | 33.6 |
| PCHR/L 25-D32-2-IQ | 25.0 | 25.0 | 2.00 | 2.40 | 24.50 | 32.0 | 120.00 | 28.4 | - | - | 33.6 |
| PCHR/L 12-D32-3-IQ | 12.0 | 12.0 | 3.00 | 3.20 | 10.70 | 32.0 | 100.00 | 26.0 | 32.00 | 16.0 | 32.6 |
| PCHR/L 16-D32-3-IQ | 16.0 | 16.0 | 3.00 | 3.20 | 14.70 | 32.0 | 120.00 | 26.0 | 32.00 | 12.0 | 32.6 |
| PCHR/L 20-D32-3-IQ | 20.0 | 20.0 | 3.00 | 3.20 | 18.70 | 32.0 | 120.00 | 26.0 | 32.00 | 8.0 | 32.6 |
| PCHR/L 25-D32-3-IQ | 25.0 | 25.0 | 3.00 | 3.20 | 23.70 | 32.0 | 120.00 | 26.0 | - | - | 32.6 |
| PCHR/L 16-D40-3-IQ | 16.0 | 16.0 | 3.00 | 3.20 | 14.70 | 40.0 | 135.00 | 33.3 | 36.80 | 17.0 | 43.5 |
| PCHR/L 20-D40-3-IQ | 20.0 | 20.0 | 3.00 | 3.20 | 18.70 | 40.0 | 135.00 | 33.3 | 35.60 | 13.0 | 43.5 |
| PCHR/L 25-D40-3-IQ | 25.0 | 25.0 | 3.00 | 3.20 | 23.70 | 40.0 | 135.00 | 33.3 | 33.60 | 8.0 | 43.5 |
| PCHR/L 32-D40-3-IQ | 32.0 | 32.0 | 3.00 | 3.20 | 30.70 | 40.0 | 135.00 | 33.3 | - | - | 43.5 |
(1) Minimum cutting width (2) Maximum cutting width
For inserts, see pages: PENTA D-N-C (527) • PENTA D-N-J (527) • PENTA D-N-PB (528) • PENTA D-R/L-C (528) • PENTA D-R/L-J (527) • PENTA D-R/L-PB (528)
| Tm | ax as | a Functi | on of Dm | ax for PENTA D | 22 | ||||||||
| Tmax | T≤1 | .2 | T≤2. | 0 | T≤3. | 0 | T≤4.0 | T≤5.0 | T≤7.0 | T≤9.0 | T≤11.0 | ||
| Dmax | N.L( | 1) | 600 | 130 | 60 | 40 | 30 | 25 | 22 | ||||
| Tmax ØDmax | |||||||||||||
| Tm | ax as | a Functi | on of Dm | ax for PENTA D | 32 | ||||||||
| Tmax | T≤1.2 | T≤2 | T≤3.0 | T≤4.0 | T≤5.0 | T≤6.0 | T≤7.0 | T≤8.0 | T≤9.0 | T≤16.0 | |||
| Dmax | N.L(1) | N.L(1) | 250 | 130 | 80 | 60 | 50 | 45 | 40 | 32 | |||
| Tm | ax as | a Functi | on of Dm | ax for PENTA D | 40 | ||||||||
| Tmax | T≤1.2 | T≤2 | T≤3.0 | T≤4.0 | T≤5.0 | T≤6.0 | T≤7.0 | T≤8.0 T≤9.0 | T≤10.0 T≤11. | 0 T≤12. | 0 T≤13.0 | T≤16.0 T≤20.0 | |
| Dmax | N.L(1) | N.L(1) | N.L(1) | 350 | 200 | 140 | 105 | 85 75 | 65 60 | 55 | 50 | 45 40 |
(1) N.L = No Limit
Spare Parts
| Designation | ||||
| PCHR/L 12-D22-2-IQ | SR M6-R-L | LEVER PD22-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 16-D22-2-IQ | SR M6-R-L | LEVER PD22-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 20-D22-2-IQ | SR M6-R-L | LEVER PD22-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 12-D22-3-IQ | SR M6-R-L | LEVER PD22-3 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 16-D22-3-IQ | SR M6-R-L | LEVER PD22-3 INJ | BLD T15/S7 | SW6-SD |
| PCHL 20-D22-3-IQ | LEVER PD22-3 INJ | |||
| PCHR/L 20-D22-3-IQ | SR M6-R-L | BLD T15/S7 | SW6-SD | |
| PCHR 20-D22-3-IQ | LEVER PD22-3 INJ | |||
| PCHR/L 12-D32-2-IQ | SR M6-R-L | LEVER PD32-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 16-D32-2-IQ | SR M6-R-L | LEVER PD32-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 20-D32-2-IQ | SR M6-R-L | LEVER PD32-2 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 25-D32-2-IQ | SR M6-R-L | LEVER PD32-2 INJ | BLD T15/S7 | SW6-SD |
| PCHL 12-D32-3-IQ | LEVER PD32-3 INJ | |||
| PCHR/L 12-D32-3-IQ | SR M6-R-L | BLD T15/S7 | SW6-SD | |
| PCHR 12-D32-3-IQ | LEVER PD32-3 INJ | |||
| PCHR/L 16-D32-3-IQ | SR M6-R-L | LEVER PD32-3 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 20-D32-3-IQ | SR M6-R-L | LEVER PD32-3 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 25-D32-3-IQ | SR M6-R-L | LEVER PD32-3 INJ | BLD T15/S7 | SW6-SD |
| PCHR/L 16-D40-3-IQ | SR M7-R-L | LEVER PD40 INJ | BLD T20/S7 | SW6-SD |
| PCHR/L 20-D40-3-IQ | SR M7-R-L | LEVER PD40 INJ | BLD T20/S7 | SW6-SD |
| PCHR/L 25-D40-3-IQ | SR M7-R-L | LEVER PD40 INJ | BLD T20/S7 | SW6-SD |
| PCHR/L 32-D40-3-IQ | SR M7-R-L | LEVER PD40 INJ | BLD T20/S7 | SW6-SD |
* Optional, should be ordered separately
