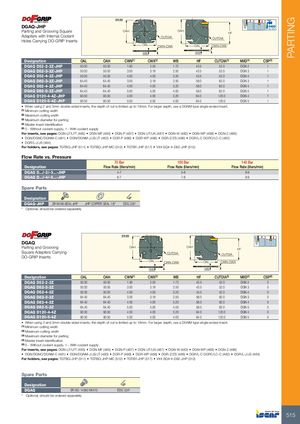

| TWISTED 2-SIDED DGAQ-JHP Parting and Grooving Square Adapters with Internal Coolant Holes Carrying DO-GRIP Inserts | D | OAH 120 | OAL WB | CUTDIA CWN-CWX OAH | OAL WB | CUTDIA HF CWN-CWX | Bar Max | ||
| Designation | OAL | OAH | CWN(1 | ) CWX( | 2) WB | HF | CUTDIA(3) | MIID(4) | CSP(5) |
| DGAQ D52-2-2Z-JHP | 50.00 | 50.00 | 1.90 | 2.50 | 1.72 | 43.5 | 52.0 | DGN 2 | 1 |
| DGAQ D52-3-2Z-JHP | 50.00 | 50.00 | 3.00 | 3.18 | 2.50 | 43.5 | 52.0 | DGN 3 | 1 |
| DGAQ D52-4-2Z-JHP | 50.00 | 50.00 | 4.00 | 4.00 | 3.20 | 43.5 | 52.0 | DGN 4 | 1 |
| DGAQ D82-3-2Z-JHP | 64.40 | 64.40 | 3.00 | 3.18 | 2.50 | 58.0 | 82.0 | DGN 3 | 1 |
| DGAQ D82-4-2Z-JHP | 64.40 | 64.40 | 4.00 | 4.00 | 3.20 | 58.0 | 82.0 | DGN 4 | 1 |
| DGAQ D82-5-2Z-JHP | 64.40 | 64.40 | 5.00 | 5.00 | 4.00 | 58.0 | 82.0 | DGN 5 | 1 |
| DGAQ D120-4-4Z-JHP | 90.50 | 90.50 | 4.00 | 4.00 | 3.20 | 84.0 | 120.0 | DGN 4 | 1 |
| DGAQD120-5-4Z-JHP | 90.50 | 90.50 | 5.00 | 5.00 | 4.00 | 84.0 | 120.0 | DGN 5 | 1 |
- When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.
(1) Minimum cutting width (2) Maximum cutting width (3) Maximum diameter for parting (4) Master insert identification (5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: DGN-LF/LFT (485) DGN-MF (485) DGN-P (487) DGN-UT/UA (487) DGN-W (482) DGN-WP (488) DGN-Z (486)
- DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGR-P (488)
- DGR-WP (488)
- DGR-Z/ZS (486)
- DGR/L-C DGRC/LC-C (482)
- DGR/L-J/JS (484)
For holders, see pages: TGTBQ-JHP (511) TGTBQ-JHP-MC (512) TGTBY-JHP (517) V## SQ#-#-D82-JHP (512)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| DGAQ D.../-2/-3...-JHP | 4-7 | 5-8 | 6-9 |
| DGAQD.../-4/-5...-JHP | 6-7 | 7-8 | 8-9 |
Spare Parts
Designation
DGAQ-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" EDG 33A*
* Optional, should be ordered separately
| TWISTED 2-SIDED DGAQ Parting and Grooving Square Adapters Carrying DO-GRIP Inserts | OAH D120 | OAL WB | CUTDIA CWN-CWX | OAH O W | CUTDIA AL CWN-CWX B | HF | |||
| Designation | OAL | OAH | CWN(1) | CWX(2) | WB | HF | CUTDIA(3) | MIID(4) | CSP(5) |
| DGAQ D52-2-2Z | 50.00 | 50.00 | 1.90 | 2.50 | 1.72 | 43.5 | 52.0 | DGN 2 | 0 |
| DGAQ D52-3-2Z | 50.00 | 50.00 | 3.00 | 3.18 | 2.50 | 43.5 | 52.0 | DGN 3 | 0 |
| DGAQ D52-4-2Z | 50.00 | 50.00 | 4.00 | 4.00 | 3.20 | 43.5 | 52.0 | DGN 4 | 0 |
| DGAQ D82-3-2Z | 64.40 | 64.40 | 3.00 | 3.18 | 2.50 | 58.0 | 82.0 | DGN 3 | 0 |
| DGAQ D82-4-2Z | 64.40 | 64.40 | 4.00 | 4.00 | 3.20 | 58.0 | 82.0 | DGN 4 | 0 |
| DGAQ D82-5-2Z | 64.40 | 64.40 | 5.00 | 5.00 | 4.00 | 58.0 | 82.0 | DGN 5 | 0 |
| DGAQ D120-4-4Z | 90.50 | 90.50 | 4.00 | 4.00 | 3.20 | 84.0 | 120.0 | DGN 4 | 0 |
| DGAQD120-5-4Z | 90.50 | 90.50 | 5.00 | 5.00 | 4.00 | 84.0 | 120.0 | DGN 5 | 0 |
- When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.
(1) Minimum cutting width (2) Maximum cutting width (3) Maximum diameter for parting (4) Master insert identification (5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: DGN-LF/LFT (485) DGN-MF (485) DGN-P (487) DGN-UT/UA (487) DGN-W (482) DGN-WP (488) DGN-Z (486)
- DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGR-P (488)
- DGR-WP (488)
- DGR-Z/ZS (486)
- DGR/L-C DGRC/LC-C (482)
- DGR/L-J/JS (484)
For holders, see pages: TGTBQ-JHP (511) TGTBQ-JHP-MC (512) TGTBY-JHP (517) V## SQ#-#-D82-JHP (512)
Spare Parts
| Designation | ||
| DGAQ | SR ISO 14580 M4X10 | EDG 33A |
