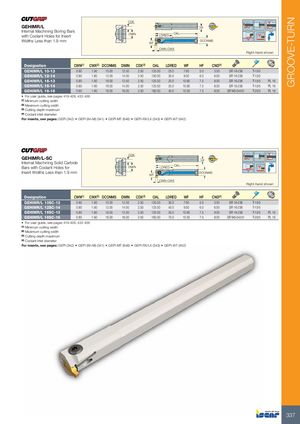

| GEHIMR/L Internal Machining Boring Bar with Coolant Holes for Insert Widths Less than 1.9 mm | s | CDX DMI | N | WF C LD | OAL WN-CWX RED | HF DCO | NMS | Right-hand s | hown | ||||
| Designation | CWN(1) | CWX(2) | DCONMS | DMIN | CDX(3) | OAL | LDRED | WF | HF | CND(4) | |||
| GEHIMR/L 10-13 | 0.80 | 1.90 | 10.00 | 12.50 | 2.50 | 125.00 | 25.0 | 7.60 | 5.0 | 3.50 | SR 16-236 | T-15/5 | |
| GEHIMR/L 12-14 | 0.80 | 1.90 | 12.00 | 14.00 | 2.50 | 150.00 | 35.0 | 9.00 | 6.0 | 6.00 | SR 16-236 | T-15/5 | |
| GEHIMR/L 16-13 | 0.80 | 1.90 | 16.00 | 12.50 | 2.50 | 125.00 | 20.0 | 10.60 | 7.5 | 8.00 | SR 16-236 | T-15/5 | PL 16 |
| GEHIMR/L 16-14 | 0.80 | 1.90 | 16.00 | 14.00 | 2.50 | 125.00 | 25.0 | 10.90 | 7.5 | 8.00 | SR 16-236 | T-15/5 | PL 16 |
| GEHIMR/L 16-16 | 0.80 | 1.90 | 16.00 | 16.00 | 2.50 | 160.00 | 40.0 | 10.50 | 7.5 | 8.00 | SR M5-04451 | T-20/5 | PL 16 |
- For user guide, see pages 419-428, 432-436
(1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Coolant inlet diameter
For inserts, see pages: GEPI (342) GEPI (W<M) (341) GEPI-MT (648) GEPI-RX/LX (343) GEPI-WT (642)
CDX
GEHIMR/L-SC
Internal Machining Solid Carbide HF
Bars with Coolant Holes for DMIN OAL
LDRED Insert Widths Less than 1.9 mm DCONMS WF CWN-CWX
Right-hand shown
| Designation | CWN(1) | CWX(2) | DCONMS | DMIN | CDX(3) | OAL | LDRED | WF | HF | CND(4) | |||
| GEHIMR/L 10SC-13 | 0.80 | 1.90 | 10.00 | 12.50 | 2.50 | 125.00 | 30.0 | 7.60 | 5.0 | 3.50 | SR 16-236 | T-15/5 | |
| GEHIMR/L 12SC-14 | 0.80 | 1.90 | 12.00 | 14.00 | 2.50 | 125.00 | 40.0 | 9.00 | 6.0 | 6.00 | SR 16-236 | T-15/5 | |
| GEHIMR/L 16SC-13 | 0.80 | 1.90 | 16.00 | 12.50 | 2.50 | 125.00 | 35.0 | 10.60 | 7.5 | 8.00 | SR 16-236 | T-15/5 | PL 16 |
| GEHIMR/L 16SC-16 | 0.80 | 1.90 | 16.00 | 16.00 | 2.50 | 160.00 | 70.0 | 10.50 | 7.5 | 8.00 | SR M5-04451 | T-20/5 | PL 16 |
- For user guide, see pages 419-428, 432-436
(1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Coolant inlet diameter
For inserts, see pages: GEPI (342) GEPI (W<M) (341) GEPI-MT (648) GEPI-RX/LX (343) GEPI-WT (642)
