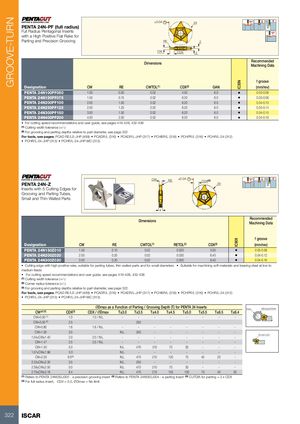

| PENTA 24N-PF (full radius) Full Radius Pentagonal Inserts with a High Positive Flat Rake for Parting and Precision Grooving | ±0.04 RE CW | 24 CDX 2 2 | |||||
| Dimensions | Recommended Machining Data | ||||||
| Designation | CW | RE | CWTOL(1) | CDX(2) | GAN | IC30N | f groove (mm/rev) |
| PENTA 24N100PF050 | 1.00 | 0.50 | 0.02 | 4.50 | 6.0 | • | 0.03-0.06 |
| PENTA 24N150PF075 | 1.50 | 0.75 | 0.02 | 6.20 | 6.0 | • | 0.03-0.06 |
| PENTA 24N200PF100 | 2.00 | 1.00 | 0.02 | 6.20 | 6.0 | • | 0.04-0.10 |
| PENTA 24N250PF125 | 2.50 | 1.25 | 0.02 | 6.20 | 6.0 | • | 0.04-0.14 |
| PENTA 24N300PF150 | 3.00 | 1.50 | 0.02 | 6.20 | 6.0 | • | 0.04-0.15 |
| PENTA 24N400PF200 | 4.00 | 2.00 | 0.02 | 6.20 | 6.0 | • | 0.04-0.16 |
- For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-) (2) For grooving and parting depths relative to part diameter, see page 322
For tools, see pages: PCAD RE/LE-JHP (499) PCADR/L (316) PCADR/L-JHP (317) PCHBR/L (318) PCHPR/L (316) PCHR/L-24 (312)
- PCHR/L-24-JHP (313)
- PCHR/L-24-JHP-MC (313)
| ENTA 24N-Z serts with 5 Cutting Edges for rooving and Parting Tubes, mall and Thin-Walled Parts | CW 4 | RE 24 CDX(3) ±0.04 | ||
| Dimensions | Recommended Machining Data | |||
| Designation CW RE | CWTOL(1) | RETOL(2) CDX(3) | IC908 | f groove (mm/rev) |
| PENTA 24N150Z010 1.50 0.10 | 0.02 | 0.020 5.00 | • | 0.05-0.08 |
| PENTA 24N200Z020 2.00 0.20 | 0.02 | 0.030 6.40 | • | 0.04-0.12 |
| PENTA 24N300Z020 3.00 0.20 | 0.02 | 0.000 6.40 | • | 0.04-0.16 |
- Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters
- Suitable for machining soft materials and bearing steel at low to
medium feeds
- For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 322
For tools, see pages: PCAD RE/LE-JHP (499) PCADR/L (316) PCADR/L-JHP (317) PCHBR/L (318) PCHPR/L (316) PCHR/L-24 (312)
- PCHR/L-24-JHP (313)
- PCHR/L-24-JHP-MC (313)
| ØDmax as a | Function o | f Parting/ | GroovingD | epth(T)fo | r PENTA 2 | 4 Inserts | ØDmax(CUTDIA) Tmax | ||||
| CW±0.02 | CDX(3) | CDX /ØDmax | T≤3.0 | T≤3.5 | T≤4.0 | T≤4.5 | T≤5.0 | T≤5.5 | T≤6.5 | T≤6.4 | |
| CW=0.50(1) | 1.0 | 1.0 / N.L. | - | - | - | - | - | - | - | - | |
| CW=0.50(2) | 2.5 | 250 | |||||||||
| CW=0.80 | 1.6 | 1.6 / N.L. | - | - | - | - | - | - | - | - | |
| CW=1.00 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 1.04≤CW≤1.40 | 2.0 | 2.0 / N.L. | - | - | - | - | - | - | - | - | ØDmax(CUTDIA) |
| CW=1.47 | 2.5 | 2.5 / N.L. | - | - | - | - | - | - | - | - | |
| CW=1.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 1.57≤CW≤1.96 | 3.0 | N.L. | - | - | - | - | - | - | - | ||
| CW=2.00 | 6.0(4) | N.L. | 470 | 210 | 130 | 75 | 45 | 20 | - | ||
| 2.22≤CW≤2.30 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 2.39≤CW≤2.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 2.70≤CW≤3.18 | 6.4 | N.L. | 470 | 210 | 135 | 100 | 70 | 40 | 20 |
(1) Refers to PENTA 24N050J000 - a precision grooving insert (2) Refers to PENTA 24N050J004 - a parting insert (3) CUTDIA for parting = 2 x CDX (4) For full radius insert, CDX = 3.0, ØDmax = No limit
