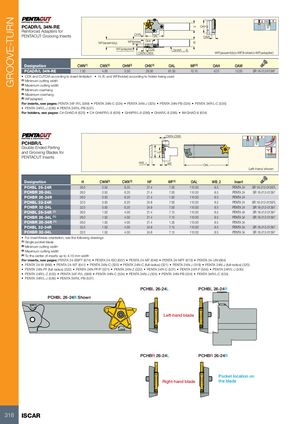

PCADR/L 34N-RE H OAH
Reinforced Adapters for PENTACUT Grooving Inserts OHN OAL OAW WF(holder) OHX
WF(assembly) B
| WF(adapter) | CDX | GHAR ...-8 | ||
| CWN-CWX | WF(assembly)=WF(holder)+WF(adapter) |
| Designation | CWN(1) | CWX (2) | OHN(3) | OHX(4) | OAL | WF(5) | OAH | OAW | |
| PCADR/L 34N-RE | 1.50 | 4.00 | 5.50 | 29.50 | 61.50 | 10.15 | 42.0 | 12.00 | SR 16-212-01397 |
- CDX and CUTDIA according to insert limitation
- H, B, and WF(holder) according to holder being used
(1) Minimum cutting width (2) Maximum cutting width (3) Minimum overhang (4) Maximum overhang (5) WF(adapter)
For inserts, see pages: PENTA 34F-R/L (589) PENTA 34N-C (324) PENTA 34N-J (325) PENTA 34N-PB (324) PENTA 34R/L-C (535)
- PENTA 34R/L-J (536)
- PENTA 34R/L-PB (537)
For holders, see pages: C#-GHAD-8 (625) C#-GHAPR/L-8 (626) GHAPR/L-8 (286) GHAR/L-8 (285) IM-GHAD-8 (634)
PCHBR/L
Double-Ended Parting
and Grooving Blades for
PENTACUT Inserts
WB_ 2
CWN-CWX
H HF WF
OAL Left-hand shown
| Designation | H | CWN(2) | CWX(3) | HF | WF(4) | OAL | WB2 | Insert | |
| PCHBL 26-24R | 26.0 | 0.50 | 6.20 | 21.4 | 7.00 | 110.00 | 8.5 | PENTA 24 | SR 16-212-01397L |
| PCHBR 26-24L | 26.0 | 0.50 | 6.20 | 21.4 | 7.00 | 110.00 | 8.5 | PENTA 24 | SR 16-212-01397 |
| PCHBR 26-24R | 26.0 | 0.50 | 6.20 | 21.4 | 1.50 | 110.00 | 8.5 | PENTA 24 | |
| PCHBL 32-24R | 32.0 | 0.50 | 6.20 | 24.8 | 7.00 | 110.00 | 8.5 | PENTA 24 | SR 16-212-01397L |
| PCHBR 32-24L | 32.0 | 0.50 | 6.20 | 24.8 | 7.00 | 110.00 | 8.5 | PENTA 24 | SR 16-212-01397 |
| PCHBL 26-34R(1) | 26.0 | 1.50 | 4.00 | 21.4 | 7.15 | 110.00 | 8.5 | PENTA 34 | SR 16-212-01397 |
| PCHBR 26-34L(1) | 26.0 | 1.50 | 4.00 | 21.4 | 7.15 | 110.00 | 8.5 | PENTA 34 | SR 16-212-01397 |
| PCHBR 26-34R(1) | 26.0 | 1.50 | 4.00 | 21.4 | 1.35 | 110.00 | 8.5 | PENTA 34 | |
| PCHBL 32-34R | 32.0 | 1.50 | 4.00 | 24.8 | 7.15 | 110.00 | 8.5 | PENTA 34 | SR 16-212-01397 |
| PCHBR 32-34L | 32.0 | 1.50 | 4.00 | 24.8 | 7.15 | 110.00 | 8.5 | PENTA 34 | SR 16-212-01397 |
- For insert/blade orientation, see the following drawings
(1) Single pocket blade (2) Minimum cutting width (3) Maximum cutting width (4) To the center of inserts up to 4.15 mm width
For inserts, see pages: PENTA 24-BSPT (674) PENTA 24-ISO (657) PENTA 24-MT (646) PENTA 24-NPT (670) PENTA 24-UN (664)
- PENTA 24-W (668)
- PENTA 24-WT (641)
- PENTA 24N-C (320)
- PENTA 24N-C (full radius) (321)
- PENTA 24N-J (319)
- PENTA 24N-J (full radius) (320)
- PENTA 24N-PF (full radius) (322)
- PENTA 24N-PF/P (321)
- PENTA 24N-Z (322)
- PENTA 24R-C (531)
- PENTA 24R-P (534)
- PENTA 24R/L-J (530)
- PENTA 24R/L-Z (533)
- PENTA 34F-R/L (589)
- PENTA 34N-C (324)
- PENTA 34N-J (325)
- PENTA 34N-PB (324)
- PENTA 34R/L-C (535)
- PENTA 34R/L-J (536)
- PENTA 34R/L-PB (537)
PCHBL 26-24L PCHBL 26-24R
PCHBL 26-24R Shown
Lock
Left-hand blade
Lock
