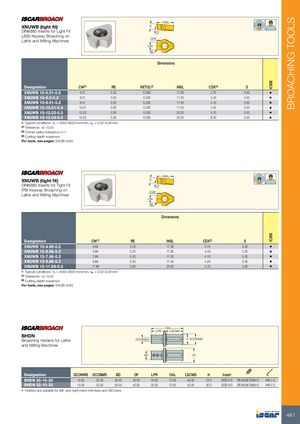

IC908IC908 BROACHING TOOLS INSL XNUWB (light fit) S DIN6885 Inserts for Light Fit 5° (JS9) Keyway Broaching on CDX Lathe and Milling Machines CW RE Dimensions Designation CW(1) RE RETOL(2) INSL CDX(3) S XNUWB 13-5.01-0.2 5.01 0.20 0.030 17.30 2.70 5.30 • XNUWB 13-6.0-0.2 6.01 0.20 0.030 17.30 3.40 5.30 • XNUWB 13-8.01-0.2 8.01 0.20 0.030 17.30 4.10 5.30 • XNUWB 13-10.01-0.3 10.01 0.30 0.030 17.30 4.20 5.30 • XNUWB 13-12.02-0.3 12.02 0.30 0.030 20.20 5.70 5.30 • XNUWB 13-12.02-0.5 12.02 0.50 0.050 20.20 8.50 5.30 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Tolerance: +0 -0.03 (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: SXCIB (440) INSL XNUWB (tight fit) S DIN6885 Inserts for Tight Fit 5° (P9) Keyway Broaching on CDX Lathe and Milling Machines CW RE Dimensions Designation CW(1) RE INSL CDX(2) S XNUWB 13-4.98-0.2 4.98 0.20 17.30 2.70 5.30 • XNUWB 13-5.98-0.2 5.98 0.20 17.30 3.40 5.30 • XNUWB 13-7.98-0.2 7.98 0.20 17.30 4.10 5.30 • XNUWB 13-9.98-0.3 9.98 0.30 17.30 4.20 5.30 • XNUWB 13-11.98-0.3 11.98 0.30 20.20 5.70 5.30 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Tolerance: +0 -0.03 (2) Cutting depth maximum For tools, see pages: SXCIB (440) OAL LPR LSCMS BHDN Broaching Holders for Lathe DCONWS H DCONMS and Milling Machines BD DF Designation DCONWS DCONMS BD DF LPR OAL LSCMS H Insert BHDN 25-10-33 10.00 25.00 20.00 33.00 33.00 73.00 40.00 23.0 SCB 010 SR M5X6 DIN913 HW 2.5 BHDN 32-10-33 10.00 32.00 20.00 40.00 33.00 73.00 40.00 30.0 SCB 010 SR M5X6 DIN913 HW 2.5 • Holders are suitable for left- and right-hand mini-bars and ISO bars 441
