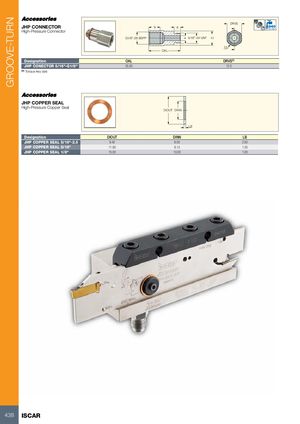

GROOVE-TURN DRVS JHP CONNECTOR 9 6 Bar Max High-Pressure Connector G1/8”-28 BSPP 4 5/16”-24 UNF 11 13 OAL Designation OAL DRVS(1) JHP CONECTOR 5/16"-G1/8" 25.00 12.0 (1) Torque key size JHP COPPER SEAL High-Pressure Copper Seal DIOUT DINN LB Designation DIOUT DINN LB JHP COPPER SEAL 5/16"-2.5 9.40 8.00 2.50 JHP COPPER SEAL 5/16" 11.90 8.15 1.35 JHP COPPER SEAL 1/8" 15.00 10.00 1.00 438 ISCAR
