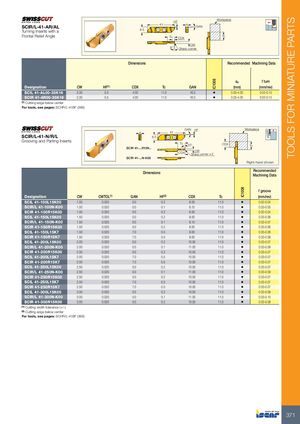

IC1008 IC1008 TOOLS FOR MINIATURE PARTS HF Workpiece SCIR/L-41-AR/AL 41 4 GAN Turning Inserts with a 8.5 Frontal Relief Angle Tc CDX Tc CW 8° Sharp corner Dimensions Recommended Machining Data ap f turn Designation CW HF(1) CDX Tc GAN (mm) (mm/rev) SCIL 41-AL00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15 SCIR 41-AR00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15 (1) Cutting edge below center For tools, see pages: SCHR/L-41BF (369) GAN HF Workpiece 4 41 SCIR/L-41-N/R/L 8.5 Grooving and Parting Inserts Tc 15° CDX Tc SCIR 41-...R15K.. CDX CWSharp corner x 2 SCIR 41-...N-K00 Right-hand shown Dimensions RecommendedMachining Data f groove Designation CW CWTOL(1) GAN HF(2) CDX Tc (mm/rev) SCIL 41-100L15K00 1.00 0.020 0.0 0.2 6.00 11.0 • 0.02-0.04 SCIR/L 41-100N-K00 1.00 0.020 0.0 0.1 6.15 11.0 • 0.03-0.05 SCIR 41-100R15K00 1.00 0.020 0.0 0.2 6.00 11.0 • 0.02-0.04 SCIL 41-150L15K00 1.50 0.020 0.0 0.2 8.00 11.0 • 0.03-0.06 SCIR/L 41-150N-K00 1.50 0.020 0.0 0.1 8.15 11.0 • 0.03-0.07 SCIR 41-150R15K00 1.50 0.020 0.0 0.2 8.00 11.0 • 0.03-0.06 SCIL 41-150L15K7 1.50 0.020 7.0 0.5 8.00 11.0 • 0.03-0.06 SCIR 41-150R15K7 1.50 0.020 7.0 0.5 8.00 11.0 • 0.03-0.06 SCIL 41-200L15K00 2.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07 SCIR/L 41-200N-K00 2.00 0.020 0.0 0.1 11.00 11.0 • 0.03-0.09 SCIR 41-200R15K00 2.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07 SCIL 41-200L15K7 2.00 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07 SCIR 41-200R15K7 2.00 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07 SCIL 41-250L15K00 2.50 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07 SCIR/L 41-250N-K00 2.50 0.020 0.0 0.1 11.00 11.0 • 0.03-0.09 SCIR 41-250R15K00 2.50 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07 SCIL 41-250L15K7 2.50 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07 SCIR 41-250R15K7 2.50 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07 SCIL 41-300L15K00 3.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.08 SCIR/L 41-300N-K00 3.00 0.020 0.0 0.1 11.00 11.0 • 0.03-0.10 SCIR 41-300R15K00 3.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.08 (1) Cutting width tolerance (+/-) (2) Cutting edge below center For tools, see pages: SCHR/L-41BF (369) 371
