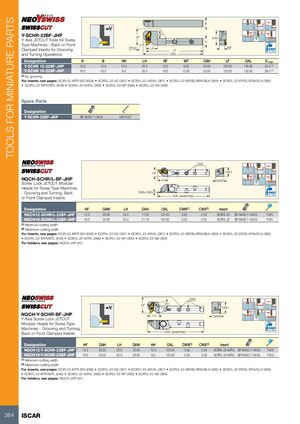

B Y-SCHR-22BF-JHP HH
| Y Axis JETCUT Tools for Swiss | HF | OAH | |
| H | |||
| Type Machines - Back or Front |
| Clamped Inserts for Grooving | Dmax | LH | WF | ||
| LF | |||||
| and Turning Operations | Bar Max | ||||
| OAL |
| Designation | H | B | HH | LH | HF | WF | OAH | LF | OAL | D |
| max | ||||||||||
| Y-SCHR 12-22BF-JHP | 12.0 | 12.0 | 13.0 | 20.0 | 12.0 | 9.00 | 25.00 | 100.00 | 105.50 | 25.0 (1) |
| Y-SCHR 16-22BF-JHP | 16.0 | 16.0 | 9.0 | 20.0 | 16.0 | 13.00 | 25.00 | 125.00 | 130.50 | 38.0 (1) |
(1) for grooving For inserts, see pages: SCIR-22-MTR-ISO (658) SCIR/L-22-AD (367) SCIR/L-22-AR/AL (367) SCIR/L-22-BR/BL/BRA/BLA (365) SCIR/L-22-ER/EL/ERA/ELA (366)
- SCIR/L-22-MTR/MTL (646)
- SCIR/L-22-N/R/L (368)
- SCIR/L-22-NP (369)
- SCIR/L-22-NX (369)
Spare Parts
Designation
Y-SCHR-22BF-JHP SR M4X0.7-19425 HW 5/32"
| NQCH-SCHR/L-BF-JHP Screw Lock JETCUT Modular | HF LH | CNT | OAW OAH | ||||||
| Heads for Swiss Type Machines - Grooving and Turning, Back or Front Clamped Inserts | CWN-CWX | OAL (assembly) | Bar Max | ||||||
| Designation | HF | OAW | LH | OAH OAL | CWN(1) | CWX(2) | Insert | ||
| NQCH12-SCHR/L-22BF-JHP | 12.0 | 20.00 | 24.0 | 17.30 124.0 | 0 0.50 | 2.50 | SCIR/L-22 | SR M4X0.7-194 | 25 T-8/5 |
| NQCH16-SCHR/L-22BF-JHP | 16.0 | 20.00 | 24.0 | 21.10 124.0 | 0 0.50 | 2.50 | SCIR/L-22 | SR M4X0.7-194 | 25 T-8/5 |
(1) Minimum cutting width (2) Maximum cutting width
For inserts, see pages: SCIR-22-MTR-ISO (658) SCIR/L-22-AD (367) SCIR/L-22-AR/AL (367) SCIR/L-22-BR/BL/BRA/BLA (365) SCIR/L-22-ER/EL/ERA/ELA (366)
- SCIR/L-22-MTR/MTL (646)
- SCIR/L-22-N/R/L (368)
- SCIR/L-22-NP (369)
- SCIR/L-22-NX (369)
For holders, see pages: NQCH-JHP (61)
CNT HF HH OAH
NQCH-Y-SCHR-BF-JHP
LH OAW
Y-Axis Screw Lock JETCUT
Modular Heads for Swiss Type
Machines - Grooving and Turning,
Back or Front Clamped Inserts OAL (assembly) Bar Max
| Designation | HF | OAH | LH | OAW | HH | OAL | CWN(1) | CWX(2) | Insert | ||
| NQCH12-Y-SCHR-22BF-JHP | 12.0 | 25.00 | 20.0 | 20.00 | 13.0 | 125.50 | 0.50 | 2.50 | SCIR/L-22-N/R/L SR M4X0.7-19425 | T-8/5 | |
| NQCH16-Y-SCHR-22BF-JHP | 16.0 | 25.00 | 20.0 | 20.00 | 9.0 | 125.50 | 0.50 | 2.50 | SCIR/L-22-N/R/L SR M4X0.7-19425 | T-8/5 |
(1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: SCIR-22-MTR-ISO (658) SCIR/L-22-AD (367) SCIR/L-22-AR/AL (367) SCIR/L-22-BR/BL/BRA/BLA (365) SCIR/L-22-ER/EL/ERA/ELA (366)
- SCIR/L-22-MTR/MTL (646)
- SCIR/L-22-N/R/L (368)
- SCIR/L-22-NP (369)
- SCIR/L-22-NX (369)
For holders, see pages: NQCH-JHP (61)
