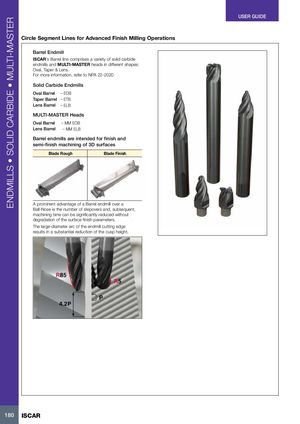

Circle Segment Lines for Advanced Finish Milling Operations
Barrel Endmill
ISCAR’s Barrel line comprises a variety of solid carbide endmills and MULTI-MASTER heads in different shapes: Oval, Taper & Lens. For more information, refer to NPA 22-2020
Solid Carbide Endmills
| Oval Barrel | – EOB |
| Taper Barrel | – ETB |
| Lens Barrel | – ELB |
| MULTI-MASTER Heads | |
| Oval Barrel | – MM EOB |
| Lens Barrel | – MM ELB |
Barrel endmills are intended for finish and semi-finish machining of 3D surfaces Blade Rough Blade Finish
A prominent advantage of a Barrel endmill over a Ball-Nose is the number of stepovers and, subsequent, machining time can be significantly reduced without degradation of the surface finish parameters. The large-diameter arc of the endmill cutting edge results in a substantial reduction of the cusp height.
