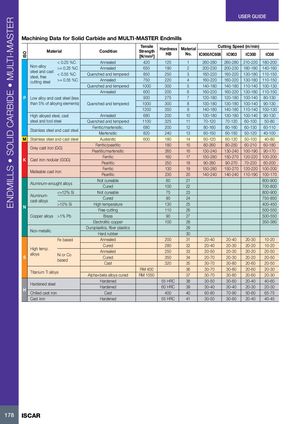

Machining Data for Solid Carbide and MULTI-MASTER Endmills
| Tensile | Hardness | Material | C | utting Spe | ed(m/min | ) | ||
| ISO Material | Condition | Strength [N/mm2] | HB | No. | IC900/IC608 | IC903 | IC300 | IC08 |
| < 0.25 %C | Annealed | 420 | 125 | 1 | 260-280 | 260-280 | 210-220 | 180-200 |
| Non-alloy tldt >= 0.25 %C | Annealed | 650 | 190 | 2 | 200-230 | 200-230 | 160-180 | 140-160 |
| see an cas tl f < 0.55 %C | Quenched and tempered | 850 | 250 | 3 | 160-220 | 160-220 | 130-180 | 110-150 |
| see, ree cutting steel >= 0.55 %C | Annealed | 750 | 220 | 4 | 160-220 | 160-220 | 130-180 | 110-150 |
| Quenched and tempered | 1000 | 300 | 5 | 140-180 | 140-180 | 110-140 | 100-130 | |
| Annealed | 600 | 200 | 6 | 160-220 | 160-220 | 130-180 | 110-150 | |
| P Low alloy and cast steel (less | 930 | 275 | 7 | 120-180 | 120-180 | 100-140 | 80-130 | |
| than 5% of alloying elements) | Quenched and tempered | 1000 | 300 | 8 | 130-180 | 130-180 | 100-140 | 90-130 |
| 1200 | 350 | 9 | 140-180 | 140-180 | 110-140 | 100-130 | ||
| High alloyed steel, cast | Annealed | 680 | 200 | 10 | 130-180 | 130-180 | 100-140 | 90-130 |
| steel and tool steel | Quenched and tempered | 1100 | 325 | 11 | 70-120 | 70-120 | 60-100 | 50-80 |
| Stiltldttl | Ferritic/martensitic. | 680 | 200 | 12 | 80-160 | 80-160 | 60-130 | 60-110 |
| aness see an cas see | Martensitic | 820 | 240 | 13 | 60-150 | 60-150 | 50-120 | 40-100 |
| M Stainless steel and cast steel | Austenitic | 600 | 180 | 14 | 60-120 | 60-120 | 50-100 | 40-80 |
| GtiGG | Ferritic/pearlitic | 180 | 15 | 80-260 | 80-250 | 60-210 | 60-180 | |
| rey cas ron () | Pearlitic/martensitic | 260 | 16 | 130-240 | 130-240 | 100-190 | 90-170 | |
| Ferritic | 160 | 17 | 150-280 | 150-270 | 120-220 | 100-200 | ||
| K Cast iron nodular (GGG) | Pearlitic | 250 | 18 | 90-280 | 90-270 | 70-220 | 60-200 | |
| Malleable cast iron | Ferritic | 130 | 19 | 150-280 | 150-270 | 120-220 | 100-200 | |
| Pearlitic | 230 | 20 | 140-240 | 140-240 | 110-190 | 100-170 | ||
| Aliht ll | Not cureable | 60 | 21 | 800-900 | ||||
| umnum-wroug aoys | Cured | 100 | 22 | 700-800 | ||||
| Ali | Not cureable | 75 | 23 | 800-900 | ||||
| umnum- t-ll | Cured | 90 | 24 | 750-850 | ||||
| N casaoys >12% Si | High temperature | 130 | 25 | 400-450 | ||||
| Free cutting | 110 | 26 | 500-550 | |||||
| Copper alloys >1% Pb | Brass | 90 | 27 | 500-550 | ||||
| Electrolitic copper | 100 | 28 | 350-380 | |||||
| Ntlli | Duroplastics,fiberplastics | 29 | ||||||
| on-meac | Hard rubber | 30 | ||||||
| Fe based | Annealed | 200 | 31 | 20-40 | 20-40 | 20-30 | 10-20 | |
| Cured | 280 | 32 | 20-40 | 20-30 | 20-20 | 10-20 | ||
| High temp. ll | Annealed | 250 | 33 | 20-50 | 20-30 | 20-20 | 20-50 | |
| S aoys Ni or Co bd | Cured | 350 | 34 | 20-70 | 20-30 | 20-20 | 20-50 | |
| ase | Cast | 320 | 35 | 30-70 | 30-80 | 20-60 | 20-50 | |
| RM 400 | 36 | 30-70 | 30-80 | 20-60 | 20-30 | |||
| Titanium Ti alloys | Alpha+beta alloys cured | RM 1050 | 37 | 30-70 | 30-80 | 20-60 | 20-30 | |
| Hardened steel | Hardened | 55 HRC | 38 | 30-50 | 30-60 | 20-40 | 40-60 | |
| H | Hardened | 60 HRC | 39 | 30-40 | 30-40 | 20-30 | 20-30 | |
| Chilled cast iron | Cast | 400 | 40 | 60-80 | 70-90 | 50-60 | 65-75 | |
| Cast iron | Hardened | 55 HRC | 41 | 30-50 | 30-60 | 20-40 | 40-45 |
