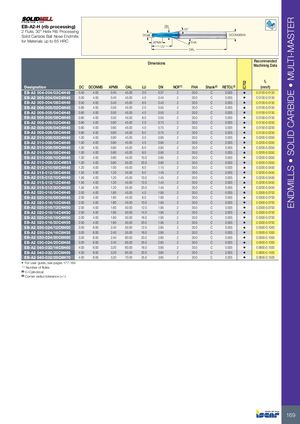

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2-H (rib processing) DN
15°
2 Flute, 30° Helix Rib Processing
Solid Carbide Ball Nose Endmills DCe8 DCONMSh6
for Materials up to 65 HRC APMX FHA
LU
OAL
Recommended
Dimensions
Machining Data
fz
IC702
Designation DC DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3) (mm/t)
EB-A2 004-004/03C4H45 0.40 4.00 0.40 45.00 3.0 0.37 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 005-004/04C4H45 0.50 4.00 0.40 45.00 4.0 0.45 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 005-004/08C4H45 0.50 4.00 0.40 45.00 8.0 0.45 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 006-005/02C4H45 0.60 4.00 0.50 45.00 2.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 006-005/04C4H45 0.60 4.00 0.50 45.00 4.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 006-005/08C4H45 0.60 4.00 0.50 45.00 8.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 008-006/02C4H45 0.80 4.00 0.60 45.00 2.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 008-006/04C4H45 0.80 4.00 0.60 45.00 4.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 008-006/06C4H45 0.80 4.00 0.60 45.00 6.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 010-008/03C4H45 1.00 4.00 0.80 45.00 3.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/04C4H45 1.00 4.00 0.80 45.00 4.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/06C4H45 1.00 4.00 0.80 45.00 6.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/08C4H45 1.00 4.00 0.80 45.00 8.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/10C4H45 1.00 4.00 0.80 45.00 10.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/20C4M55 1.00 4.00 0.80 55.00 20.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 012-010/08C4H45 1.20 4.00 1.00 45.00 8.0 1.15 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/06C4H45 1.50 4.00 1.20 45.00 6.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/10C4H45 1.50 4.00 1.20 45.00 10.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/12C4H45 1.50 4.00 1.20 45.00 12.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/20C4H55 1.50 4.00 1.20 55.00 20.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 020-016/04C4H45 2.00 4.00 1.60 45.00 4.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/06C4H45 2.00 4.00 1.60 45.00 6.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/10C4H45 2.00 4.00 1.60 45.00 10.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/12C4H50 2.00 4.00 1.60 50.00 12.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/14C4H50 2.00 4.00 1.60 50.00 14.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/16C4H50 2.00 4.00 1.60 50.00 16.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/20C4H55 2.00 4.00 1.60 55.00 20.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 030-024/12C6H50 3.00 6.00 2.40 50.00 12.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/16C6H55 3.00 6.00 2.40 55.00 16.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/20C6H60 3.00 6.00 2.40 60.00 20.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/25C6H65 3.00 6.00 2.40 65.00 25.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 040-032/16C6H60 4.00 6.00 3.20 60.00 16.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
EB-A2 040-032/20C6H65 4.00 6.00 3.20 65.00 20.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
EB-A2 040-032/25C6H70 4.00 6.00 3.20 70.00 25.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
169
