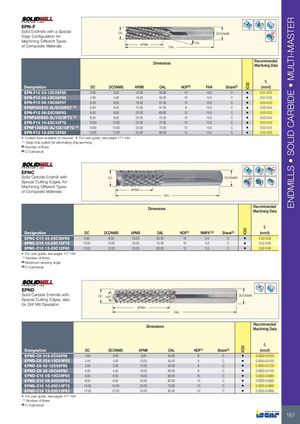

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EPN-F
Solid Endmills with a Special DC DCONMS
Edge Configuration for
Machining Different Types FHA
of Composite Materials APMX
OAL

Recommended
Dimensions
Machining Data

fz


IC02
Designation DC DCONMS APMX OAL NOF(2) FHA Shank(3) (mm/t)
EPN-F10 03-12C03F55 3.00 3.00 12.00 55.00 10 15.0 C • 0.01-0.02
EPN-F10 04-16C04F55 4.00 4.00 16.00 55.00 10 15.0 C • 0.01-0.02
EPN-F10 06-19C06F57 6.00 6.00 19.00 57.00 10 15.0 C • 0.02-0.03
EPNF060S15-3L/9C06F57 (1) 6.00 6.00 15.00 57.00 9 15.0 C • 0.02-0.04
EPN-F12 08-25C08F63 8.00 8.00 25.00 63.00 12 15.0 C • 0.02-0.03
EPNF080S25-3L/10C8F72 (1) 8.00 8.00 25.00 72.00 10 15.0 C • 0.02-0.04
EPN-F12 10-25C10F72 10.00 10.00 25.00 72.00 12 15.0 C • 0.02-0.03
EPNF100S25-3L/12C10F72 (1) 10.00 10.00 25.00 72.00 12 15.0 C • 0.02-0.04
EPN-F12 12-25C12F83 12.00 12.00 25.00 83.00 12 15.0 C • 0.02-0.03
• Coated tools available on request • For user guide, see pages 177-184
(1) Deep chip gullets for eliminating chip jamming.
(2) Number of flutes
(3) C-Cylindrical


Rd°

EPNC
Solid Carbide Endmill with DC DCONMS
Special Cutting Edges, for
Machining Different Types
APMX
of Composite Materials
OAL

Recommended
Dimensions
Machining Data

fz

IC02
Designation DC DCONMS APMX OAL NOF(1) RMPX°(2) Shank(3) (mm/t)
EPNC-C10 08-25C08F63 8.00 8.00 25.00 63.00 10 5.0 C • 0.02-0.08
EPNC-C10 10-25C10F72 10.00 10.00 25.00 72.00 10 5.0 C • 0.02-0.08
EPNC-C10 12-25C12F83 12.00 12.00 25.00 83.00 10 5.0 C • 0.02-0.08
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical


EPND
Solid Carbide Endmills with DC 140° DCONMS
Special Cutting Edges, also
for Drill Mill Operation
APMX
OAL

Recommended
Dimensions
Machining Data

fz
IC02


Designation DC DCONMS APMX OAL NOF(1) Shank(2) (mm/t)
EPND-C6 016-5C03F55 1.60 3.00 5.00 55.00 6 C • 0.0050-0.0100
EPND-C6 024-10C03F55 2.40 3.00 10.00 55.00 6 C • 0.0050-0.0100
EPND-C8 03-12C03F55 3.00 3.00 12.00 55.00 8 C • 0.0050-0.0120
EPND-C8 04-16C04F60 4.00 4.00 16.00 60.00 8 C • 0.0050-0.0120
EPND-C10 06-19C06F65 6.00 6.00 19.00 65.00 10 C • 0.0200-0.0800
EPND-C10 08-25C08F63 8.00 8.00 25.00 63.00 10 C • 0.0200-0.0800
EPND-C10 10-25C10F72 10.00 10.00 25.00 72.00 10 C • 0.0200-0.0800
EPND-C10 12-25C12F83 12.00 12.00 25.00 83.00 10 C • 0.0200-0.0800
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical


161
