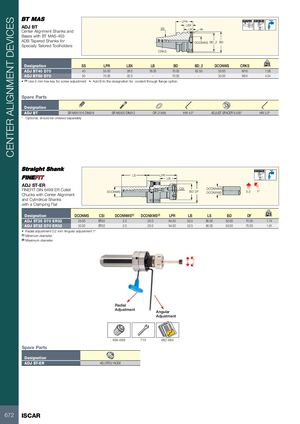

Каталог Iscar инструментальная оснастка 2022 - страница 124

CENTER ALIGNMENT DEVICES LPR AT3 Taper 58-60 HRc LBX ADJ BT SS LB (1) Center Alignment Shanks and Bases with BT MAS-403 ADB Tapered Shanks for DCONWS BD_2 BD Specially Tailored Toolholders CRKS kg Designation SS LPR LBX LB BD BD_2 DCONWS CRKS ADJ BT40 D70 40 55.00 28.0 18.00 70.00 62.50 35.00 M16 1.56 ADJ BT50 D70 50 70.00 32.0 - 70.00 - 35.00 M24 4.34 • (1) Use 4 mm hex key for screw adjustment • Add B to the designation for coolant through flange option. Spare Parts Designation ADJ BT SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* * Optional, should be ordered separately 58-60 HRc LS LPR LB ADJ ST-ER FINEFIT DIN 6499 ER Collet CSI DCONNWS DCONMS BD DF DCONXWS 0.2 1° Chucks with Center Alignment and Cylindrical Shanks with a Clamping Flat kg Designation DCONMS CSI DCONNWS(1) DCONXWS(2) LPR LB LS BD DF ADJ ST25 D70 ER32 25.00 ER32 2.0 20.0 94.50 52.5 80.00 50.00 70.00 1.74 ADJ ST32 D70 ER32 32.00 ER32 2.0 20.0 94.50 52.5 80.00 50.00 70.00 1.91 • Radial adjustment 0.2 mm Angular adjustment 1° (1) Minimum diameter (2) Maximum diameter Radial Adjustment Angular Adjustment 684-688 715 682-684 Spare Parts Designation ADJ ST-ER ADJ ER32 NOSE 672 ISCAR
