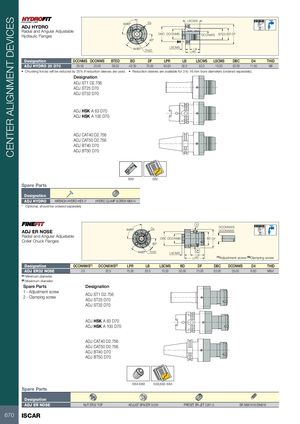

CENTER ALIGNMENT DEVICES LSCWS 58-60 HRc 4x90º D4 ADJ HYDRO Radial and Angular Adjustable DBC DCONMS DCONWS BTED BD DF Hydraulic Flanges 45º 4x90º LSCMS THID LB LPR Designation DCONMS DCONWS BTED BD DF LPR LB LSCWS LSCMS DBC D4 THID ADJ HYDRO 20 D70 35.00 20.00 38.00 42.00 70.00 50.00 35.0 52.0 10.00 53.00 11.00 M6 • Chucking forces will be reduced by 25% if reduction sleeves are used. • Reduction sleeves are available for 3 to 16 mm bore diameters (ordered separately). Designation ADJ ST1 D2.756 ADJ ST25 D70 ADJ ST32 D70 ADJ HSK A 63 D70 ADJ HSK A 100 D70 ADJ CAT40 D2.756 ADJ CAT50 D2.756 ADJ BT40 D70 ADJ BT50 D70 699 562 Spare Parts Designation ADJ HYDRO WRENCH HYDRO HEX 4* HYDRO CLAMP SCREW M8X14 * Optional, should be ordered separately 1 58-60 HRc DCONNWS 4x90º D4 DCONXWS ADJ ER NOSE Radial and Angular Adjustable DBC DCONMS BD DF Collet Chuck Flanges 45º 2 4x90º THID LSCMS LB (1)Adjustment screw (2)Clamping screw LPR Designation DCONNWS(1) DCONXWS(2) LPR LB LSCMS BD DF DBC DCONMS D4 THID ADJ ER32 NOSE 2.0 20.0 75.00 53.0 10.00 50.00 70.00 53.00 35.00 6.60 M8x1 (1) Minimum diameter (2) Maximum diameter Spare Parts Designation 1 - Adjustment screw ADJ ST1 D2.756 2 - Clamping screw ADJ ST25 D70 ADJ ST32 D70 ADJ HSK A 63 D70 ADJ HSK A 100 D70 ADJ CAT40 D2.756 ADJ CAT50 D2.756 ADJ BT40 D70 ADJ BT50 D70 684-688 558,682-684 Spare Parts Designation ADJ ER NOSE NUT ER32 TOP ADJUST SPACER 9.5X5 PRESET ER-JET 22X1.5 SR M8X1X16 DIN916 670 ISCAR
