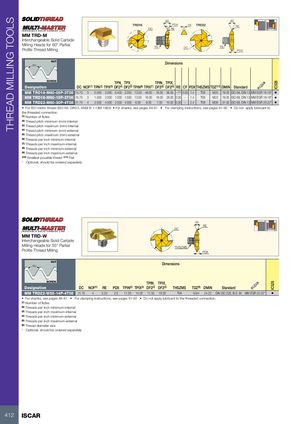

MM TRD-M
Interchangeable Solid Carbide
Milling Heads for 60° Partial
Profile Thread Milling
NUT 60°
| TRD16 | PDX | CF | TRD22 | RE | |
| DC | RE |
TS DC TS
PDX Dimensions
SCREW TPN_ TPX_ TPIN_ TPIX_
Designation DC NOF(1) TPN(2) TPX(3) DF2(4) DF2(5) TPIN(6) TPIX(7) DF2(8) DF2(9) RE CF PDX THSZMS TDZ(10) DMIN Standard
| MM TRD16-M60-05P-3T06 | 15.70 | 3 | 0.500 2.000 0.400 2.000 13.00 48.00 16.00 56.00 - (11) 0.05 1.4 | T06 | M20 19.05 ISO 68, DIN 13 MM EGR 16-18* | • | |||
| MM TRD16-M60-15P-3T06 | 15.70 | 3 | 1.500 2.000 1.000 1.500 13.00 16.00 16.00 28.00 0.05 - | 1.4 | T06 | M22 19.05 ISO 68, DIN 13 MM EGR 16-18* | • | ||
| MM TRD22-M60-30P-4T08 | 21.70 | 4 | 3.000 4.500 2.500 4.000 6.00 | 9.00 | 7.00 10.00 0.20 - | 2.4 | T08 | M36 31.00 ISO 68, DIN 13 MM EGR 20-22* | • |
- For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983)
- For shanks, see pages 84-91
- For clamping instructions, see pages 91-92
- Do not apply lubricant to
the threaded connection. (1) Number of flutes (2) Thread pitch minimum (mm)-internal (3) Thread pitch maximum (mm)-internal (4) Thread pitch minimum (mm)-external (5) Thread pitch maximum (mm)-external (6) Threads per inch minimum-internal (7) Threads per inch maximum-internal (8) Threads per inch minimum-external (9) Threads per inch maximum-external (10) Smallest possible thread (11) Flat
- Optional, should be ordered separately
MM TRD-W
Interchangeable Solid Carbide
Milling Heads for 55° Partial
Profile Thread Milling
NUT 55°
DC
THSZMS
Dimensions
55 RE
PDX
SCREW TPIN_ TPIX_
| Designation | DC NOF(1) | RE | PDX TPIN(2) TPIX(3) | DF2(4) | DF2(5) | THSZMS | TDZ(6) | DMIN | Standard | |||||
| MM TRD22-W55-14P-4T08 | 21.70 | 4 | 0.20 | 2.0 | 11.00 | 14.00 | 11.50 | 16.00 | T08 | G3/4 | 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22* | • |
- For shanks, see pages 84-91
- For clamping instructions, see pages 91-92
- Do not apply lubricant to the threaded connection.
(1) Number of flutes (2) Threads per inch minimum-internal (3) Threads per inch maximum-internal (4) Threads per inch minimum-external (5) Threads per inch maximum-external (6) Thread diameter size
- Optional, should be ordered separately
