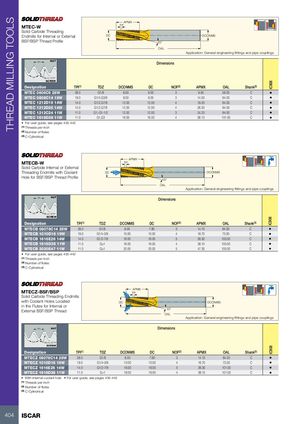

THREAD MILLING TOOLS IC908IC908IC908 APMX MTEC-W TP Solid Carbide Threading Endmills for Internal or External DC DCONMS BSF/BSP Thread Profile 15° OAL Application: General engineering fittings and pipe couplings TP NUT Dimensions 55˚ RE=0.137TP SCREW Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 28W 28.0 G1/8 6.00 6.00 3 9.50 58.00 C • MTEC 0808C14 19W 19.0 G1/4,G3/8 8.00 8.00 3 14.00 64.00 C • MTEC 1212D19 14W 14.0 G1/2,G7/8 12.00 12.00 4 19.30 84.00 C • MTEC 1212D26 14W 14.0 G1/2,G7/8 12.00 12.00 4 26.30 84.00 C • MTEC 1212C24 11W 11.0 G1,-G1-1/2 12.00 12.00 3 24.20 84.00 C • MTEC 1616D38 11W 11.0 G1,G3 16.00 16.00 4 38.10 101.00 C • • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX MTECB-W TP Solid Carbide Internal or External Threading Endmills with Coolant DC DCONMS Hole for BSF/BSP Thread Profile 15° OAL Application: General engineering fittings and pipe couplings TP NUT Dimensions 55˚ RE=0.137TP SCREW Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECB 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECB 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECB 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 105.00 C • MTECB 1616D38 11W 11.0 G≥1 16.00 16.00 4 38.10 105.00 C • MTECB 2020E47 11W 11.0 G≥1 20.00 20.00 5 47.30 105.00 C • • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical MTECZ-BSF/BSP APMXTP Solid Carbide Threading Endmills with Coolant Holes Located DC DCONMS in the Flutes for Internal or External BSF/BSP Thread 15° OAL Application: General engineering fittings and pipe couplings TP NUT Dimensions 55˚ RE=0.137TP SCREW Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECZ 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECZ 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECZ 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 101.00 C • MTECZ 1616D38 11W 11.0 G>1 16.00 16.00 4 38.10 101.00 C • • With internal coolant hole • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 404 ISCAR
