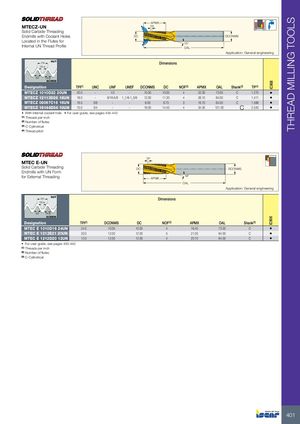

| TECZ-UN olid Carbide Threading ndmills with Coolant Holes ocated in the Flutes for ternal UN Thread Profile | DC | TP APMX | OAL 15° | DCONMS Application: | General engin | eering | ||||||
| TP/8 TP/4 60˚ TP NUT SCREW | Dimension | s | 08 | |||||||||
| Designation | TPI(1) | UNC | UNF | UNEF | DCONMS | DC | NOF(2) | APMX | OAL | Shank(3) | TP(4) | IC9 |
| MTECZ 1010D22 20UN | 20.0 | - | 1/2 | - | 10.00 | 10.00 | 4 | 22.30 | 73.00 | C | 1.270 | • |
| MTECZ 12113D26 18UN | 18.0 | - | 9/16-5/8 | 11/8-15/8 | 12.00 | 11.30 | 4 | 26.10 | 84.00 | C | 1.411 | • |
| MTECZ 08067C16 16UN | 16.0 | 3/8 | - | - | 8.00 | 6.70 | 3 | 16.70 | 64.00 | C | 1.588 | • |
| MTECZ 16144D34 10UN | 10.0 | 3/4 | - | - | 16.00 | 14.40 | 4 | 34.30 | 101.00 | C | 2.540 | • |
- With internal coolant hole
- For user guide, see pages 435-442
(1) Threads per inch (2) Number of flutes (3) C-Cylindrical (4) Thread pitch
| TEC E-UN olid Carbide Threading ndmills with UN Form | DC TP | DCONMS | |||||
| r External Threading | APMX | OAL | Application: General eng | ineering | |||
| Designation TP/8 TP/4 60˚ TP NUT SCREW | TPI(1) | DCONMS | Dimensions DC NOF(2) | APMX | OAL | Shank(3) | IC908 |
| MTEC E 1010D16 24UN | 24.0 | 10.00 | 10.00 4 | 16.40 | 73.00 | C | • |
| MTEC E 1212E21 20UN | 20.0 | 12.00 | 12.00 5 | 21.00 | 84.00 | C | • |
| MTEC E 1212D20 12UN | 12.0 | 12.00 | 12.00 4 | 20.10 | 84.00 | C | • |
- For user guide, see pages 435-442
(1) Threads per inch (2) Number of flutes (3) C-Cylindrical
