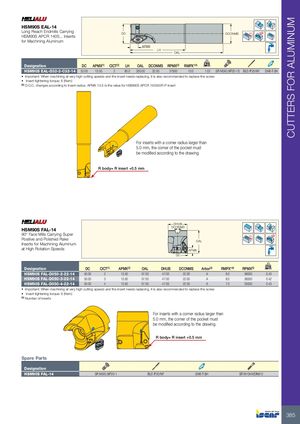

HSM90S EAL-14
Long Reach Endmills Carrying
| HSM90S APCR 1405... Inserts | DC | DCONMS | Rd° | |||
| for Machining Aluminum | ||||||
| APMX | ||||||
| LH | ||||||
| OAL |
| Designation | DC | APMX(1) | CICT(2) | LH | OAL | DCONMS RPMX(3) | RMPX°(4) | kg | ||||
| HSM90S EAL-D32-2-C32-14 | 32.00 | 13.50 | 2 | 80.0 | 200.00 | 32.00 | 37500 | 10.0 | 1.02 | SR M5X0.8IP20-1S BLD IP20/M7 | SW6-T-SH |
- Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw
- Insert tightening torque: 6 (Nxm)
(1) D.O.C. changes according to insert radius. APMX 13.5 is the value for HSM90S APCR 140550R-P insert
For inserts with a corner radius larger than
5.0 mm, the corner of the pocket must
be modified according to the drawing.
R body= R insert +0.5 mm
DHUB HSM90S FAL-14 DCONMS
90° Face Mills Carrying Super
Positive and Polished Rake Rd° Inserts for Machining Aluminum OAL
at High Rotation Speeds
APMX DC
| Designation | DC | CICT(1) | APMX(2) | OAL | DHUB | DCONMS | Arbor(3) | RMPX°(4) | RPMX(5) | kg | ||
| HSM90S FAL-D050-2-22-14 | 50.00 | 2 | 13.50 | 57.00 | 47.00 | 22.00 | A | 8.0 | 38000 | 0.43 | ||
| HSM90S FAL-D050-3-22-14 | 50.00 | 3 | 13.50 | 57.00 | 47.00 | 22.00 | A | 8.0 | 38000 | 0.42 | ||
| HSM90S FAL-D050-4-22-14 | 50.00 | 4 | 13.50 | 57.00 | 47.00 | 22.00 | A | 7.0 | 33000 | 0.43 |
- Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw
- Insert tightening torque: 6 (Nxm)
(1) Number of inserts
For inserts with a corner radius larger than
5.0 mm, the corner of the pocket must
be modified according to the drawing. R body= R insert +0.5 mm
Spare Parts
Designation
HSM90S FAL-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M10X40DIN912
