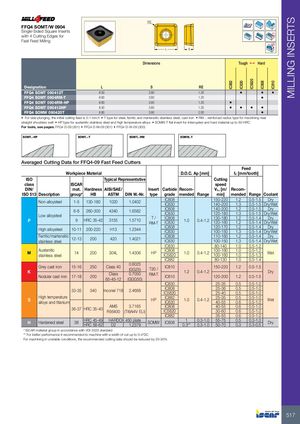

FFQ4 SOMT/W 0904 Single-Sided Square Inserts with 4 Cutting Edges for Fast Feed Milling		RE L	S				Rd°
		Dimensions			Tough1	Hard
Designation	L	S	RE	IC882	IC830 IC5820	IC808	IC810
FFQ4 SOMT 090412T	8.50	3.90	1.20		•	•	•
FFQ4 SOMT 0904RM-T	8.60	3.80	1.20			•
FFQ4 SOMT 0904RM-HP	8.60	3.80	1.20	•
FFQ4 SOMT 090412HP	8.50	3.80	1.20	•	• •	•
FFQ4 SOMW 090420T	8.80	3.90	2.00			•

For side plunging, the initial cutting feed is 0.1 mm/t
T type for steel, ferritic and martensitic stainless steel, cast iron
RM-.. reinforced radius type for machining near

straight shoulders wall HP type for austenitic stainless steel and high temperature alloys SOMW-T flat insert for interrupted and hard material up to 60 HRC

For tools, see pages: FFQ4 D-09 (301) FFQ4 D-M-09 (301) FFQ4 D-W-09 (300)

SOMT..-HP SOMT..-T SOMT..-RM SOMW..T

Averaged Cutting Data for FFQ4-09 Fast Feed Cutters

	W	orkpiec	e Material					D.O.C. A	p [mm]		Fe fz [mm	ed /tooth]
ISO				Typical Re	presentstive					Cutting
class		ISCAR								speed
DIN/		mat.	Hardness	AISI/SAE/		Insert	Carbide	Recom-		Vc, [m/	Recom-
ISO 513	Description	group	HB	ASTM	DIN W.-Nr.	type	grade	mended	Range	min]	mended	Range	Coolant
	Non-alloysteel	1-5	130-180	1020	1.0402		IC808 IC830			150-220 140-200	1.2 1.3	0.5-1.5 0.5-1.5	Dry Dry/Wet
		6-8	260-300	4340	16582		IC808			140-200	1.2	0.5-1.5	Dry
	Low allosteel				.		IC830			120-180	1.3	0.5-1.5	Dry/Wet
	y					T /	IC808			130180	12	0514	D
P		9	HRC 35-42	3135	1.5710	RM-T	IC830	1.0	0.4-1.2	- 120-160	. 1.2	.-. 0.5-1.4	ry Dry/Wet
	High alloysteel	10-11	200-220	H13	1.2344		IC808 IC830			120-170 100-150	1.2 1.3	0.5-1.4 0.5-1.4	Dry Dry/Wet
	Ferritic/martensitic	1213	200	420	14021		IC808			110-160	1.2	0.5-1.4	Dry
	stainless steel	-			.		IC830			100-150	1.3	0.5-1.4	Dry/Wet
							IC830			80-140	1.0	0.5-1.2
M	Austenitic stainless steel	14	200	304L	1.4306	HP	IC808 IC5820	1.0	0.4-1.2	100-160 100-160	1.0 1.0	0.5-1.2 0.5-1.3	Wet
							IC882			80-130	1.0	0.5-1.4
	Grey cast iron	15-16	250	Class 40	0.6025 (GG25)	T20 /	IC810			150-220	1.2	0.5-1.5
K				Class	07050	RMT		1.2	0.4-1.2				Dry
	Nodular cast iron	17-18	200	65-45-12	. (GGG50)	-	IC810			120-200	1.2	0.5-1.5
							IC830			25-35	0.5	0.5-1.0
							IC808			25-36	0.5	0.5-1.0
		33-35	340	nconel 718	2.4668		IC5820			25-40	0.5	0.5-1.0
S	High temperature					HP	IC882	10	04-12	25-35	0.5	0.5-1.0	Wt
	alloys and titanium						IC830	.	..	40-55	0.6	0.5-1.0	e
				AMS	3.7165		IC808			40-55	0.6	0.5-1.0
		36-37	HRC 35-40	R56400	(Ti6Al4V ELI)		IC5820			30-60	0.6	0.5-1.0
							IC882			35-55	0.6	0.5-1.0
H	Hardened steel	38	HRC 45-49 HRC 58-62	HARDOX D2	450 plate 1.2379	SOMW	IC808	1 0.3	0.3-1.0 0.3-1.0	55-75 50-70	0.5 0.3	0.3-1.0 0.3-0.5	Dry

* ISCAR material group in accordance with VDI 3323 standard ** For better performance it recommended to machine with a width of cut up to 0.4*DC For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%
