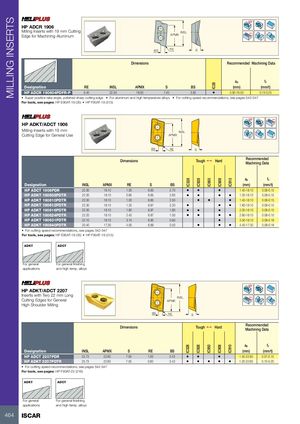

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 148

MILLING INSERTS IC328IC328 IC928IC928 IC950IC950 IC28 IC908IC908 IC910IC910 HP ADCR 1906 Milling Inserts with 19 mm CuttingEdge for Machining Aluminum INSLAPMX Rd° BS RE S Dimensions Recommended Machining Data ap fz Designation RE INSL APMX S BS (mm) (mm/t) HP ADCR 190604PDFR-P 0.40 22.50 19.50 7.40 3.50 • 0.80-19.50 0.15-0.25 • Super positive rake angle, polished sharp cutting edge • For aluminum and high temperature alloys • For cutting speed recommendations, see pages 542-547 For tools, see pages: HP E90AT-19 (35) • HP F90AT-19 (215) Rd° HP ADKT/ADCT 1906 Milling Inserts with 19 mm lNSL Cutting Edge for General Use APMX BS RE S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation INSL APMX RE S BS (mm) (mm/t) HP ADCT 1906PDR 22.30 18.10 1.00 6.83 2.70 • • • 1.40-18.10 0.08-0.15 HP ADKT 190608PDTR 22.30 18.10 0.80 6.85 2.60 • • • • 1.20-18.10 0.08-0.15 HP ADKT 190610PDTR 22.30 18.10 1.00 6.85 2.50 • • • 1.40-18.10 0.08-0.15 HP ADKT 190612PDTR 22.30 18.10 1.20 6.87 2.20 • • • 1.60-18.10 0.08-0.15 HP ADKT 190616PDTR 22.30 18.10 1.60 6.87 1.80 • • • 2.00-18.10 0.08-0.15 HP ADKT 190624PDTR 22.20 18.10 2.40 6.87 1.00 • • • • 2.80-18.10 0.08-0.15 HP ADKT 190631PDTR 22.10 18.10 3.10 6.90 0.60 • 3.50-18.10 0.08-0.18 HP ADKT 190640PDTR 20.40 17.30 4.00 6.89 0.50 • • • 4.40-17.30 0.08-0.18 • For cutting speed recommendations, see pages 542-547 For tools, see pages: HP E90AT-19 (35) • HP F90AT-19 (215) ADKT ADCT For general For general finishing applications and high temp. alloys HP ADKT/ADCT 2207 Inserts with Two 22 mm Long INSL Rd° Cutting Edges for General APMX High Shoulder Milling BS RE S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation INSL APMX S RE BS (mm) (mm/t) HP ADCT 2207PDR 25.73 22.60 7.50 1.00 3.43 • • • 1.40-22.60 0.07-0.15 HP ADKT 2207PDTR 25.73 22.60 7.50 0.80 3.43 • • • • • 1.20-22.60 0.10-0.20 • For cutting speed recommendations, see pages 542-547 For tools, see pages: HP F90AT-22 (216) ADKT ADCT For general For general finishing applications and high temp. alloys 464 ISCAR
