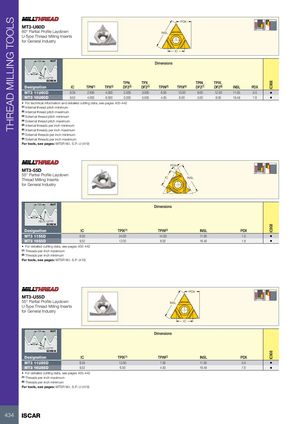

PDX
MT3-U60D
60° Partial Profile Laydown
U-Type Thread Milling Inserts
for General Industry
IC
TP NUT Dimensions
55° RE=0.137TP
SCREW TPN_ TPX_ TPIN_ TPIX_
| Designation | IC | TPN(1) | TPX(2) | DF2(3) | DF2(4) | TPIN(5) | TPIX(6) | DF2(7) | DF2(8) | INSL | PDX | |
| MT3 11U60D | 6.35 | 2.500 | 4.000 | 2.000 | 3.000 | 6.00 | 10.00 | 8.00 | 12.00 | 11.00 | 5.0 | • |
| MT3 16U60D | 9.52 | 4.000 | 6.000 | 3.000 | 5.000 | 4.00 | 6.00 | 5.00 | 8.00 | 16.49 | 7.6 | • |
- For technical information and detailed cutting data, see pages 435-442
(1) Internal thread pitch minimum (2) Internal thread pitch maximum (3) External thread pitch minimum (4) External thread pitch maximum (5) Internal threads per inch minimum (6) Internal threads per inch maximum (7) External threads per inch minimum (8) External threads per inch maximum
For tools, see pages: MTSR M.I. S.P.-U (419)
PDX
MT3-55D
55° Partial Profile Laydown
Thread Milling Inserts IC INSL
for General Industry
TP NUT Dimensions
55° RE=0.137TP SCREW
| Designation | IC | TPIX(1) | TPIN(2) | INSL | PDX | |
| MT3 1155D | 6.35 | 24.00 | 14.00 | 11.00 | 1.0 | • |
| MT3 1655D | 9.52 | 12.00 | 8.00 | 16.49 | 1.8 | • |
- For detailed cutting data, see pages 435-442
(1) Threads per inch maximum (2) Threads per inch minimum
For tools, see pages: MTSR M.I. S.P. (419)
PDX
MT3-U55D
55° Partial Profile Laydown
INSL
U-Type Thread Milling Inserts
for General Industry
IC
TP NUT Dimensions
55° RE=0.137TP SCREW
| Designation | IC | TPIX(1) | TPIN(2) | INSL | PDX | |
| MT3 11U55D | 6.35 | 12.00 | 7.00 | 11.00 | 5.0 | • |
| MT3 16U55D | 9.52 | 6.00 | 4.50 | 16.49 | 7.6 | • |
- For detailed cutting data, see pages 435-442
(1) Threads per inch maximum (2) Threads per inch minimum
For tools, see pages: MTSR M.I. S.P.-U (419)
