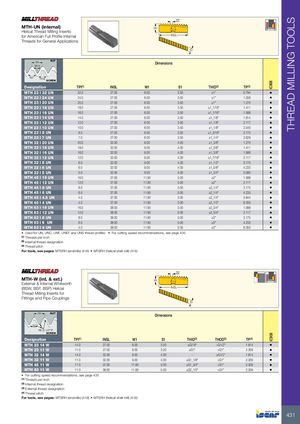

IC908IC908 THREAD MILLING TOOLS TP MTH-UN (internal) W1 Helical Thread Milling Inserts for American Full Profile Internal lNSL Threads for General Applications S1 TP NUT Dimensions TP/4 60° TP/8 SCREW Designation TPI(1) INSL W1 S1 THID(2) TP(3) MTH 23 I 32 UN 32.0 27.00 8.00 3.50 ≥1" 0.794 • MTH 23 I 24 UN 24.0 27.00 8.00 3.50 ≥1" 1.058 • MTH 23 I 20 UN 20.0 27.00 8.00 3.50 ≥1" 1.270 • MTH 23 I 18 UN 18.0 27.00 8.00 3.50 ≥1_1/16" 1.411 • MTH 23 I 16 UN 16.0 27.00 8.00 3.50 ≥1_1/16" 1.588 • MTH 23 I 14 UN 14.0 27.00 8.00 3.50 ≥1_1/8" 1.814 • MTH 23 I 12 UN 12.0 27.00 8.00 3.50 ≥1_1/8" 2.117 • MTH 23 I 10 UN 10.0 27.00 8.00 3.50 ≥1_1/8" 2.540 • MTH 23 I 8 UN 8.0 27.00 8.00 3.50 ≥1_3/16" 3.175 • MTH 23 I 7 UN 7.0 27.00 8.00 3.50 ≥1_1/4" 3.629 • MTH 32 I 20 UN 20.0 32.00 9.00 4.00 ≥1_3/8" 1.270 • MTH 32 I 18 UN 18.0 32.00 9.00 4.00 ≥1_3/8" 1.411 • MTH 32 I 16 UN 16.0 32.00 9.00 4.00 ≥1_3/8" 1.588 • MTH 32 I 12 UN 12.0 32.00 9.00 4.00 ≥1_7/16" 2.117 • MTH 32 I 8 UN 8.0 32.00 9.00 4.00 ≥1_1/2" 3.175 • MTH 32 I 6 UN 6.0 32.00 9.00 4.00 ≥1_5/8" 4.233 • MTH 32 I 5 UN 5.0 32.00 9.00 4.00 ≥1_3/4" 5.080 • MTH 45 I 16 UN 16.0 37.00 11.90 5.00 ≥2" 1.588 • MTH 45 I 12 UN 12.0 37.00 11.90 5.00 ≥2" 2.117 • MTH 45 I 8 UN 8.0 37.00 11.90 5.00 ≥2_1/4" 3.175 • MTH 45 I 6 UN 6.0 37.00 11.90 5.00 ≥2_1/4" 4.233 • MTH 45 I 4.5 UN 4.5 37.00 11.90 5.00 ≥2_1/4" 5.644 • MTH 45 I 4 UN 4.0 37.00 11.90 5.00 ≥2_1/2" 6.350 • MTH 63 I 16 UN 16.0 38.00 11.90 5.00 ≥2_3/4" 1.588 • MTH 63 I 12 UN 12.0 38.00 11.90 5.00 ≥2_3/4" 2.117 • MTH 63 I 8 UN 8.0 38.00 11.90 5.00 ≥3" 3.175 • MTH 63 I 6 UN 6.0 38.00 11.90 5.00 ≥3" 4.233 • MTH 63 I 4 UN 4.0 38.00 11.90 5.00 ≥3" 6.350 • • Used for UN, UNC, UNF, UNEF and UNS thread profiles • For cutting speed recommendations, see page 435 (1) Threads per inch (2) Internal thread designation (3) Thread pitch For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418) TP MTH-W (int. & ext.) W1 External & Internal Whitworth (BSW, BSF, BSP) Helical lNSL Thread Milling Inserts for Fittings and Pipe Couplings S1 TP NUT Dimensions 55° RE=0.137TP SCREW Designation TPI(1) INSL W1 S1 THID(2) THOD(3) TP(4) MTH 23 14 W 14.0 27.00 8.00 3.50 ≥G7/8" >G1/2" 1.814 • MTH 23 11 W 11.0 27.00 8.00 3.50 ≥G1" >G1" 2.309 • MTH 32 14 W 14.0 32.00 9.00 4.00 - ≥G1/2" 1.814 • MTH 32 11 W 11.0 32.00 9.00 4.00 ≥G1_1/8" >G1" 2.309 • MTH 45 11 W 11.0 37.00 11.90 5.00 ≥G1_3/4" >G1" 2.309 • MTH 63 11 W 11.0 38.00 11.90 5.00 ≥G2_1/2" >G1" 2.309 • • For cutting speed recommendations, see page 435 (1) Threads per inch (2) Internal thread designation (3) External thread designation (4) Thread pitch For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418) 431
