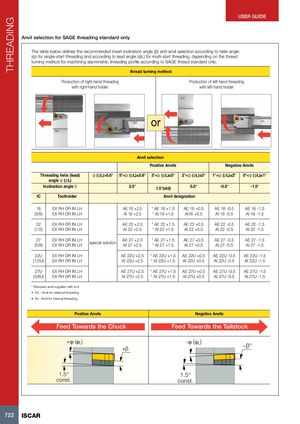

THREADING USER GUIDE Anvil selection for SAGE threading standard only The table below defines the recommended insert inclination angle (β) and anvil selection according to helix angle (φ) for single-start threading and according to lead angle (φL) for multi-start threading, depending on the thread turning method for machining asymmetric threading profile according to SAGE thread standard only. thread turning method Production of right-hand threading Production of left-hand threading with right-hand holder with left-hand holder LH RH or LH RH Anvil selection Positive Anvils Negative Anvils Threading helix (lead) φ (φL)>5.6° 5°<φ (φL)≤5.6° 3°<φ (φL)≤5° 2°<φ (φL)≤3° 1°<φ (φL)≤2° 0°<φ (φL)≤1° angle φ (φL) Inclination angle β 2.5° 1.5°(std) 0.5° -0.5° -1.5° lC Toolholder Anvil designation 16 EX RH OR IN LH AE 16 +2.5 * AE 16 +1.5 AE 16 +0.5 AE 16 -0.5 AE 16 -1.5 (3/8) EX RH OR IN LH AI 16 +2.5 * AI 16 +1.5 AI16 +0.5 AI 16 -0.5 AI 16 -1.5 22 EX RH OR IN LH AE 22 +2.5 * AE 22 +1.5 AE 22 +0.5 AE 22 -0.5 AE 22 -1.5 (1/2) EX RH OR IN LH AI 22 +2.5 * AI 22 +1.5 AI 22 +0.5 AI 22 -0.5 AI 22 -1.5 27(5/8) EX RH OR IN LHEX RH OR IN LH special solution AE 27 +2.5AI 27 +2.5 * AE 27 +1.5* AI 27 +1.5AE 27 +0.5AI 27 +0.5AE 27 -0.5AI 27 -0.5AE 27 -1.5AI 27 -1.5 22U EX RH OR IN LH AE 22U +2.5 * AE 22U +1.5 AE 22U +0.5 AE 22U -0.5 AE 22U -1.5 (1/2U) EX RH OR IN LH AI 22U +2.5 * AI 22U +1.5 AI 22U +0.5 AI 22U -0.5 AI 22U -1.5 27U EX RH OR IN LH AE 27U +2.5 * AE 27U +1.5 AE 27U +0.5 AE 27U -0.5 AE 27U -1.5 (5/8U) EX RH OR IN LH AI 27U +2.5 * AI 27U +1.5 AI 27U +0.5 AI 27U -0.5 AI 27U -1.5 * Standard anvil supplied with tool • EX - Anvil for external threading • IN - Anvil for internal threading Positive Anvils Negative Anvils Feed Towards the Chuck Feed Towards the Tailstock +φ (φL) +β -φ (φL) −β° 1.5° 1.5° const. const. 722 ISCAR
