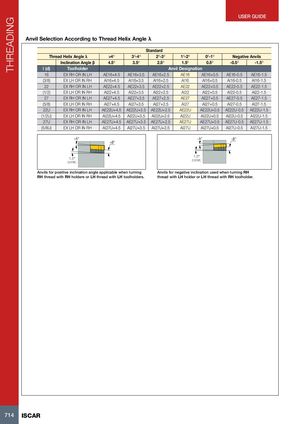

Anvil Selection According to Thread Helix Angle λ
| S | tandard | |||||||
| Thr | ead Helix Angle λ | >4º | 3º-4º | 2º-3º | 1º-2º | 0º-1º | Negativ | e Anvils |
| Inclination Angle β | 4.5º | 3.5º | 2.5º | 1.5º | 0.5º | -0.5º | -1.5º | |
| l (d) | Toolholder | Anv | il Designa | tion | ||||
| 16 | EX RH OR IN LH | AE16+4.5 | AE16+3.5 | AE16+2.5 | AE16 | AE16+0.5 | AE16-0.5 | AE16-1.5 |
| (3/8) | EX LH OR IN RH | AI16+4.5 | AI16+3.5 | AI16+2.5 | AI16 | AI16+0.5 | AI16-0.5 | AI16-1.5 |
| 22 | EX RH OR IN LH | AE22+4.5 | AE22+3.5 | AE22+2.5 | AE22 | AE22+0.5 | AE22-0.5 | AE22-1.5 |
| (1/2) | EX LH OR IN RH | AI22+4.5 | AI22+3.5 | AI22+2.5 | AI22 | AI22+0.5 | AI22-0.5 | AI22-1.5 |
| 27 | EX RH OR IN LH | AE27+4.5 | AE27+3.5 | AE27+2.5 | AE27 | AE27+0.5 | AE27-0.5 | AE27-1.5 |
| (5/8) | EX LH OR IN RH | AI27+4.5 | AI27+3.5 | AI27+2.5 | AI27 | AI27+0.5 | AI27-0.5 | AI27-1.5 |
| 22U | EX RH OR IN LH | AE22U+4.5 | AE22U+3.5 | AE22U+2.5 | AE22U | AE22U+0.5 | AE22U-0.5 | AE22U-1.5 |
| (1/2U) | EX LH OR IN RH | AI22U+4.5 | AI22U+3.5 | AI22U+2.5 | AI22U | AI22U+0.5 | AI22U-0.5 | AI22U-1.5 |
| 27U | EX RH OR IN LH | AE27U+4.5 | AE27U+3.5 | AE27U+2.5 | AE27U | AE27U+0.5 | AE27U-0.5 | AE27U-1.5 |
| (5/8U) | EX LH OR IN RH | AI27U+4.5 | AI27U+3.5 | AI27U+2.5 | AI27U | AI27U+0.5 | AI27U-0.5 | AI27U-1.5 |
| +λ° | +β° | −λ° | −β° | |||||
| 1.5° const. | 1 co | .5° nst. |
Anvils for positive inclination angle applicable when turning Anvils for negative inclination used when turning RH RH thread with RH holders or LH thread with LH toolholders. thread with LH holder or LH thread with RH toolholder.
