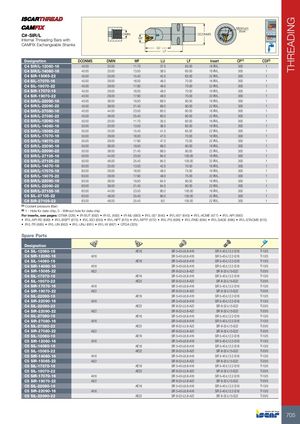

| C#-SIR/L Internal Threading Bars with CAMFIX Exchangeable Shanks | WF DMIN | LU LF | DCONMS | Minimum Bore | ||||
| Designation | DCONMS | DMIN | WF | LU | LF | Insert | CP(1) | CDI(2) |
| C4 SIR/L-12060-16 | 40.00 | 20.00 | 11.70 | 37.0 | 60.00 | 16 IR/L.. | 300 | 1 |
| C4 SIR/L-14060-16 | 40.00 | 25.00 | 13.50 | 38.0 | 60.00 | 16 IR/L.. | 300 | 1 |
| C4 SIR-15065-22 | 40.00 | 25.00 | 15.40 | 42.0 | 65.00 | 22 IR/L.. | 300 | 1 |
| C4 SIL-17070-16 | 40.00 | 29.00 | 16.00 | 48.0 | 70.00 | 16 IR/L.. | 300 | 1 |
| C4 SIL-19070-22 | 40.00 | 29.00 | 17.90 | 48.0 | 70.00 | 22 IR/L.. | 300 | 1 |
| C4 SIR-17070-16 | 40.00 | 29.00 | 16.00 | 48.0 | 70.00 | 16 IR/L.. | 300 | 1 |
| C4 SIR-19070-22 | 40.00 | 29.00 | 17.90 | 48.0 | 70.00 | 22 IR/L.. | 300 | 1 |
| C4 SIR/L-22090-16 | 40.00 | 36.00 | 19.50 | 69.0 | 90.00 | 16 IR/L.. | 300 | 1 |
| C4 SIR/L-22090-22 | 40.00 | 38.00 | 21.40 | 69.0 | 90.00 | 22 IR/L.. | 300 | 1 |
| C4 SIR/L-27080-16 | 40.00 | 44.00 | 23.50 | 60.0 | 80.00 | 16 IR/L.. | 300 | 1 |
| C4 SIR/L-27080-22 | 40.00 | 46.00 | 25.40 | 60.0 | 80.00 | 22 IR/L.. | 300 | 1 |
| C5 SIR/L-12060-16 | 50.00 | 20.00 | 11.70 | 35.0 | 60.00 | 16 IR/L.. | 300 | 1 |
| C5 SIR/L-14060-16 | 50.00 | 25.00 | 13.50 | 36.0 | 60.00 | 16 IR/L.. | 300 | 1 |
| C5 SIR/L-15065-22 | 50.00 | 25.00 | 15.40 | 41.0 | 65.00 | 22 IR/L.. | 300 | 1 |
| C5 SIR/L-17070-16 | 50.00 | 29.00 | 16.00 | 47.0 | 70.00 | 16 IR/L.. | 300 | 1 |
| C5 SIR/L-19070-22 | 50.00 | 29.00 | 17.90 | 47.0 | 70.00 | 22 IR/L.. | 300 | 1 |
| C5 SIR/L-22090-16 | 50.00 | 36.00 | 19.50 | 68.0 | 90.00 | 16 IR/L.. | 300 | 1 |
| C5 SIR/L-22090-22 | 50.00 | 38.00 | 21.40 | 68.0 | 90.00 | 22 IR/L.. | 300 | 1 |
| C5 SIR/L-27105-16 | 50.00 | 44.00 | 23.50 | 84.0 | 105.00 | 16 IR/L.. | 300 | 1 |
| C5 SIR/L-27105-22 | 50.00 | 46.00 | 25.40 | 84.0 | 105.00 | 22 IR/L.. | 300 | 1 |
| C6 SIR/L-14070-16 | 63.00 | 25.00 | 13.50 | 42.0 | 70.00 | 16 IR/L.. | 300 | 1 |
| C6 SIR/L-17075-16 | 63.00 | 29.00 | 16.00 | 48.0 | 75.00 | 16 IR/L.. | 300 | 1 |
| C6 SIR/L-19075-22 | 63.00 | 29.00 | 17.90 | 48.0 | 75.00 | 22 IR/L.. | 300 | 1 |
| C6 SIR/L-22090-16 | 63.00 | 36.00 | 19.50 | 64.0 | 90.00 | 16 IR/L.. | 300 | 1 |
| C6 SIR/L-22090-22 | 63.00 | 38.00 | 21.40 | 64.0 | 90.00 | 22 IR/L.. | 300 | 1 |
| C6 SIR/L-27105-16 | 63.00 | 44.00 | 23.50 | 80.0 | 105.00 | 16 IR/L.. | 300 | 1 |
| C6 SIL-27105-22 | 63.00 | 46.00 | 25.40 | 80.0 | 105.00 | 22 IR/L.. | 300 | 1 |
| C6 SIR-27105-22 | 63.00 | 46.00 | 25.40 | 8.0 | 105.00 | 22 IR/L.. | 300 | 1 |
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: GTMA (326) IR-BUT (692) IR-EL (693) IR-MJ (683) IR/L-55° (640) IR/L-60° (645) IR/L-ACME (677) IR/L-API (690)
- IR/L-API RD (689)
- IR/L-BSPT (673)
- IR/L-ISO (655)
- IR/L-NPT (670)
- IR/L-NPTF (672)
- IR/L-PG (686)
- IR/L-RND (694)
- IR/L-SAGE (686)
- IR/L-STACME (675)
- IR/L-TR (685)
- IR/L-UN (662)
- IR/L-UNJ (681)
- IR/L-W (667)
- GTGA (325)
Spare Parts
| Designation | |||||
| C4 SIL-12060-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-12060-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIL-14060-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-14060-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-15065-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIL-17070-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIL-19070-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIR-17070-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-19070-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIL-22090-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-22090-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIL-22090-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIR-22090-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIL-27080-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIR-27080-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SIL-27080-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SIR-27080-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SIL-12060-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIR-12060-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIL-14060-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIL-15065-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SIR-14060-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIR-15065-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SIL-17070-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIL-19070-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SIR-17070-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIR-19070-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SIL-22090-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIR-22090-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C5 SIL-22090-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 |
