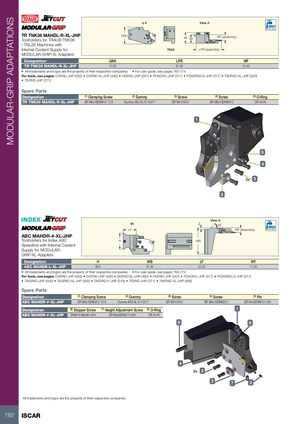

Каталог Iscar державки и пластины для нарезания резьбы 2022 - страница 148

MODULAR-GRIP ADAPTATIONS A View A 150 Bar Max TR TNK36 MAHDL-R-XL-JHP OAHToolholders for TRAUB TNK36 48 38 WF (assembly) / TNL26 Machines with Internal Coolant Supply for TR45 LPR (assembly) MODULAR-GRIP-XL Adapters Designation OAH LPR WF TR TNK36 MAHDL-R-XL-JHP 74.00 91.50 24.50 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 For tools, see pages: CGPAD-JHP (282) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-XL-JHP (500) • TGPAD-JHP (271) Spare Parts Designation (1) Clamping Screw (2) Dummy (3) Screw (4) Screw (5) O-Ring TR TNK36 MAHDL-R-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR M5-04451 SR M6x10DIN6912 OR 5x1N 1 5 4 3x 3 2 View A A 5 45˚ 150 LF WF (assembly) Bar Max ABC MAHDR-#-XL-JHP Toolholders for Index ABC H WB Speedline with Internal Coolant Supply for MODULAR- GRIP-XL Adapters Designation H WB LF WF ABC MAHDR-L-XL-JHP 56.0 91.50 44.55 17.00 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569) Spare Parts Designation (1) Clamping Screw (2) Dummy (3) Screw (4) Screw (5) Pin ABC MAHDR-#-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR M5-04451 SR M6x10DIN6912 SR M4x5DIN913 45H Designation (6) Stopper Screw (7) Height Adjustment Screw (8) O-Ring 1 ABC MAHDR-#-XL-JHP DIN913-M6x80-45H SR M5x8DIN913 45H OR 5x1N 6 8 4 3x 3 2 7 5 All trademarks and logos are the property of their respective companies 782 ISCAR
