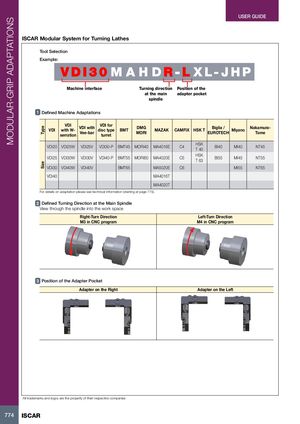

MODULAR-GRIP ADAPTATIONS TypeSize USER GUIDE ISCAR Modular System for Turning Lathes Tool Selection Example: VDI30 M A H DR-L XL-JHP Machine interface Turning direction Position of the at the main adapter pocket spindle 1 Defined Machine Adaptations VDI VDIwith W-serrationVDI withVee-barVDI fordisc typeturretBMTDMGMORIMAZAK CAMFIX HSK T Biglia /EUROTECHMiyanoNakamura-Tome VDI20 VDI25W VDI25V VDI30-P BMT45 MORI40 MA4016E C4 HSKT 40 BI40 MI40 NT45 VDI25 VDI30W VDI30V VDI40-P BMT55 MORI60 MA4020E C5 HSKT 63 BI55 MI45 NT55 VDI30 VDI40W VDI40V BMT65 MA5020E C6 MI55 NT65 VDI40 MA4016T MA4020T For details on adaptation please see technical information (starting at page 775). 2 Defined Turning Direction at the Main Spindle View through the spindle into the work space Right-Turn Direction Left-Turn Direction M3 in CNC program M4 in CNC program 3 Position of the Adapter Pocket Adapter on the Right Adapter on the Left All trademarks and logos are the property of their respective companies 774 ISCAR
