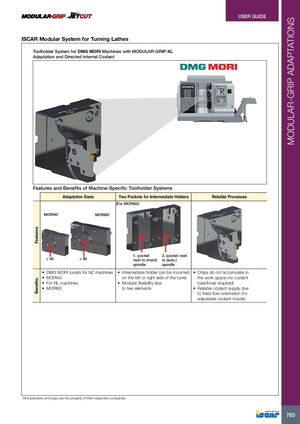

Features:Benefits: MODULAR-GRIP ADAPTATIONS · USER GUIDE ISCAR Modular System for Turning Lathes Toolholder System for DMG MORI Machines with MODULAR-GRIP-XL Adaptation and Directed Internal Coolant Features and Benefits of Machine-Specific Toolholder Systems Adaptation Sizes Two Pockets for Intermediate Holders Reliable Processes (For MORI60) MORI40 MORI60 1. pocket 2. pocket next ø 40 ø 60 next to (main) to (sub-) spindle spindle • DMG MORI turrets for NZ machines • Intermediate holder can be mounted • Chips do not accumulate in • MORI40 on the left or right side of the turret the work space (no coolant • For NL machines • Modular flexibility due tube/hose required) • MORI60 to few elements • Reliable coolant supply due to fixed flow orientation (no adjustable coolant nozzle) All trademarks and logos are the property of their respective companies 765
