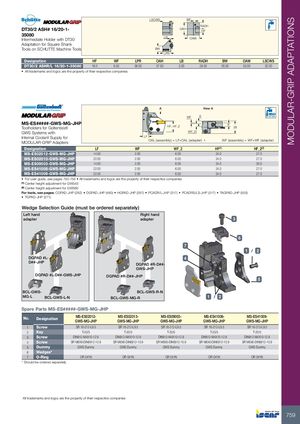

MODULAR-GRIP ADAPTATIONS LSCWS WF RADH DT30/2 ASH# 16/20-1- OAH HF 35080Intermediate Holder with DT30 LB OAW Adaptation for Square Shank Tools on SCHUTTE Machine Tools BW LPR Designation HF WF LPR OAH LB RADH BW OAW LSCWS DT30/2 ASHR/L 16/20-1-35080 16.0 9.50 38.00 57.00 5.00 28.50 26.50 55.00 32.00 • All trademarks and logos are the property of their respective companies A View A WF 6 150 Bar Max MS-ES#####-GWS-MG-JHPToolholders for Goltenbodt HF, HF_2 8 28 GWS Systems with WF_2 Internal Coolant Supply for LF MODULAR-GRIP Adapters OAL (assembly) = LF+OAL (adapter) • WF (assembly) = WF+WF (adapter) Designation LF WF WF_2 HF(1) HF_2(2) MS-ES02012-GWS-MG-JHP 14.00 2.00 6.00 24.0 27.0 MS-ES02013-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0 MS-ES09003-GWS-MG-JHP 14.00 2.00 6.00 24.0 30.0 MS-ES41008-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0 MS-ES41009-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0 • For user guide, see pages 750-756 • All trademarks and logos are the property of their respective companies (1) Center height adjustment for GWS43 (2) Center height adjustment for GWS60 For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) • TGPAD-JHP (271) Wedge Selection Guide (must be ordered separately) Left hand Right hand adapter adapter 3 6 7 1 / 2 DGPAD #L- 4 D##-JHP DGPAD #R-D##- GWS-JHP DGPAD #L-D##-GWS-JHP DGPAD #R-D##-JHP 5 BCL-GWS- BCL-GWS-R-N MG-L BCL-GWS-L-N BCL-GWS-MG-R 1 / 2 Spare Parts MS-ES#####-GWS-MG-JHP No. Designation MS-ES02012-GWS-MG-JHP MS-ES02013-GWS-MG-JHP MS-ES09003-GWS-MG-JHP MS-ES41008-GWS-MG-JHP MS-ES41009-GWS-MG-JHP 1 Screw SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5 2 Key T-20/5 T-20/5 T-20/5 T-20/5 T-20/5 3 Screw DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9 4 Screw SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 5 Dummy GWS Dummy GWS Dummy GWS Dummy GWS Dummy GWS Dummy 6 Wedges* 7 O-Ring OR 5X1N OR 5X1N OR 5X1N OR 5X1N OR 5X1N * Should be ordered separately All trademarks and logos are the property of their respective companies 759
